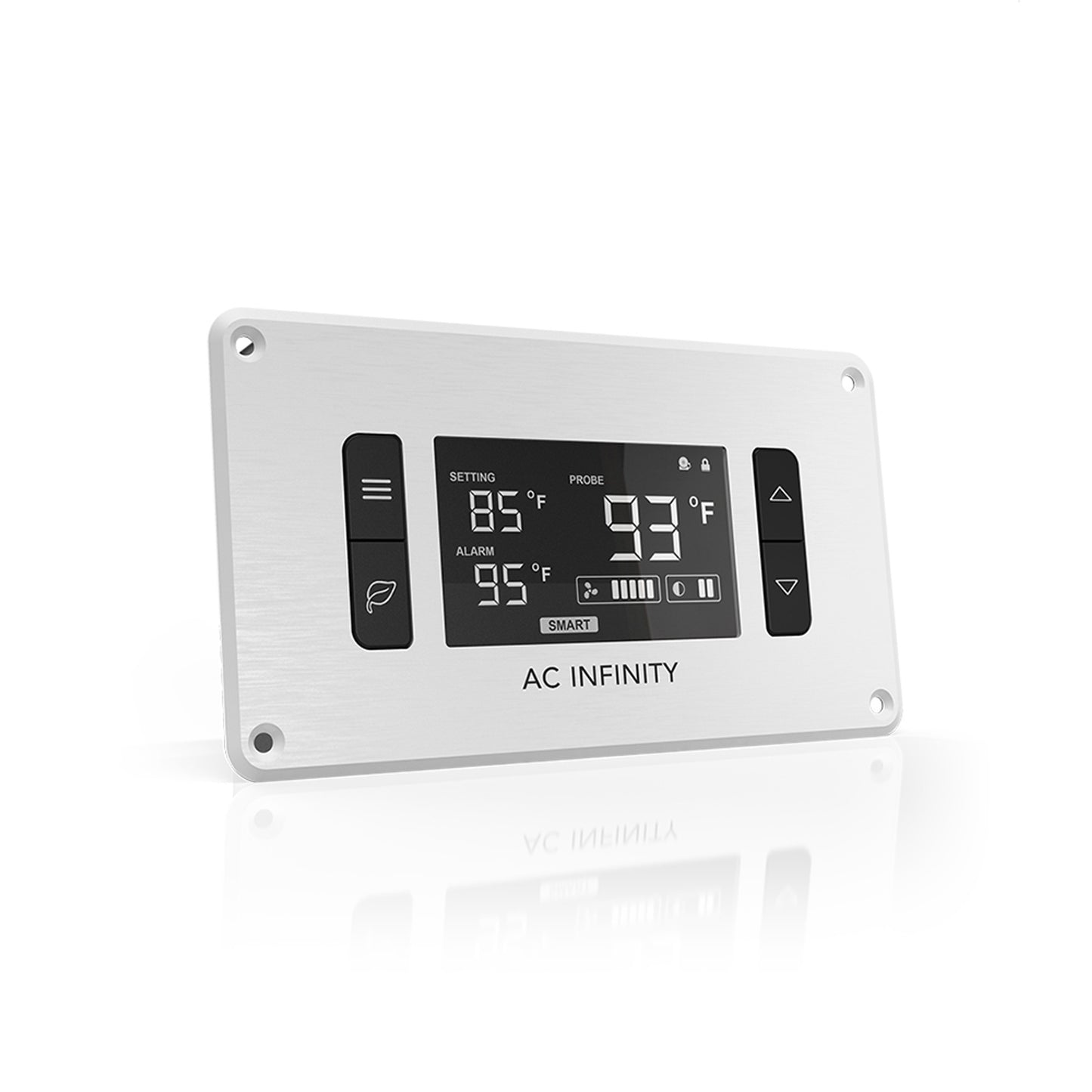

White Controller Frame

AI-CFW2

• A white wall-mount frame designed to replace the black wall-mount frames of AC Infinity Controllers.
• Compatible with controllers included in AIRPLATE T-Series, and also individually sold Controllers 2 and 8.
• Simply unscrew the top and bottom screws of the controller to remove the original frame, and fasten on the new frame.

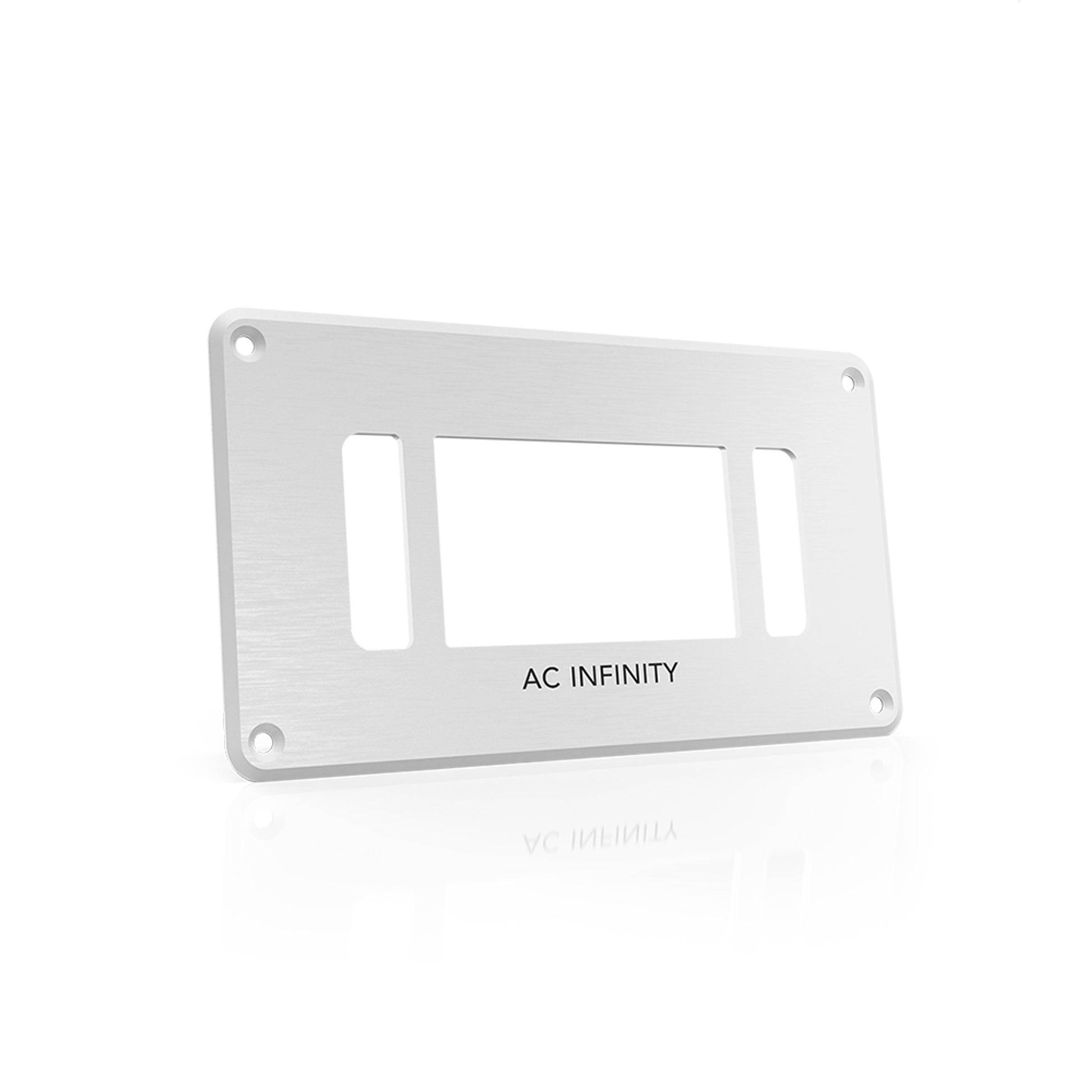

• Features a CNC-machined aluminum frame and flat screw heads; all painted matte white.
• Kit also includes (4) wood screws, (4) machine screws with nuts, and (4) controller mounting screws.

PRODUCT DESCRIPTION

The White Controller Frame is a 5.20 by 3.11 inch wall-mount frame in white designed to replace the black wall-mount frames that come standard with AC Infinity intelligent thermal fan controllers. Compatible models include all the controllers come with the AIRPLATE T-series, and individually sold Controller 2 and 8. The original frame can be removed by using a Phillips head screwdriver to unfasten the top and bottom two screws. Simply place the new frame back onto the controller and secure it using the controller mounting screws that's included in the kit. Features a CNC-machined aluminum frame and four flat-head screws, all painted matte white. Information on the additional included hardware can be found below.

HARDWARE

In addition to the frame, the kit includes four wood screws and four machine screws with nuts to mount the frame onto a cabinet or wall. Also includes four controller screws to secure the new frame onto the controller. All screw heads are painted matte white to match the white frame.

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	White Controller Frame
Product Model	AI-CFW2
UPC Code	854759004754

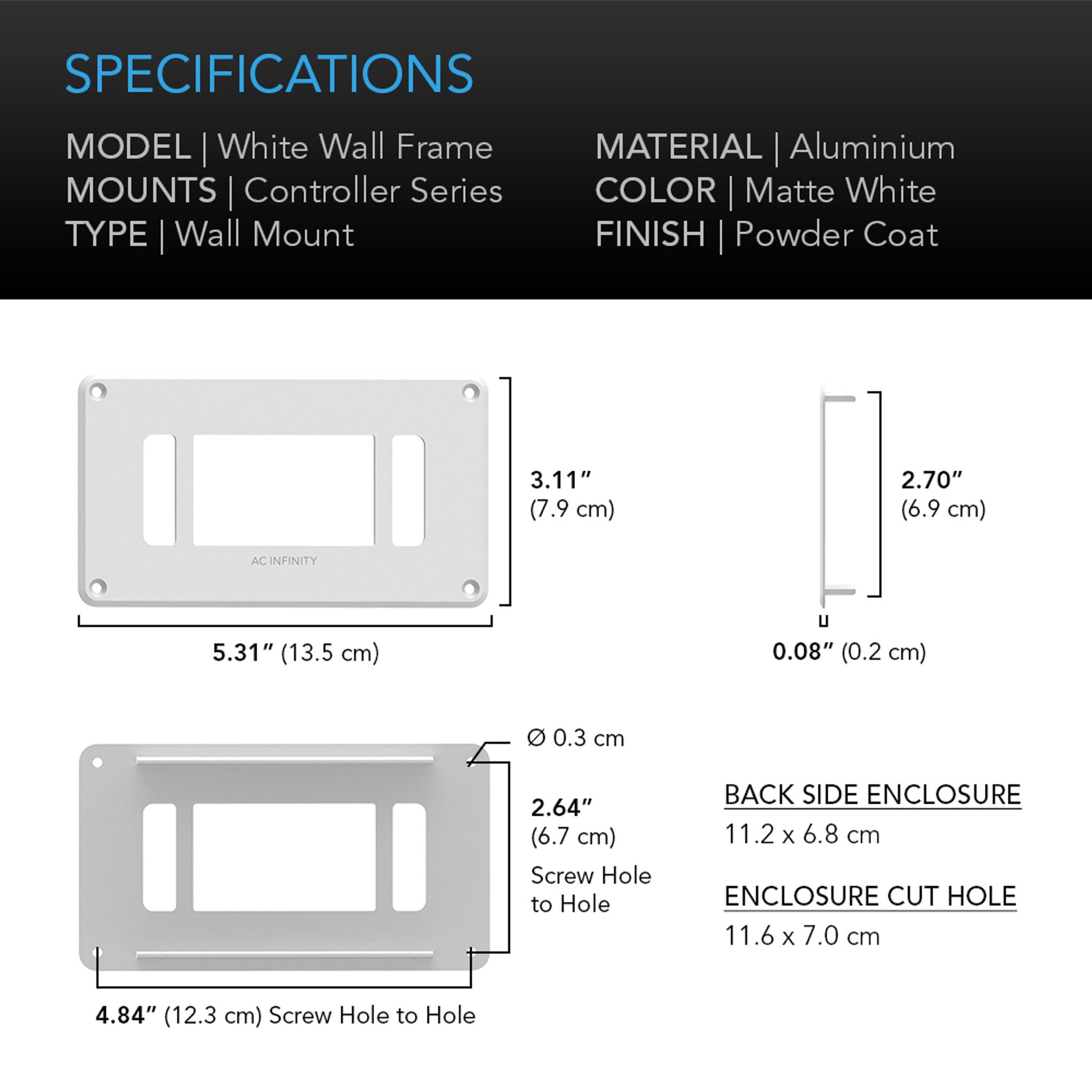

Product and Mounting Dimensions
Total Dimensions	5.20 x 3.11 x 0.08 in. (13.2 x 7.9 x 0.2 cm)
Required Mounting Hole	3.42 x 2.28 in (8.7 x 5.8 cm)
Hole to Hole Distance	4.71 x 2.64 in. (12.0 x 6.7 cm)
Screw Hole Size	Ø 0.119 in (Ø 0.3 cm)
Mounting Template	PDF
Product Performance and Technical Specs
Number of Mountable Controllers	1
Frame Type	Wall Mount
Mountable Models	CONTROLLER 2 and 8
