Controller 67, Temperature and Humidity Fan Controller, with Scheduling, Cyles, Dynamic Speed, Data App

• A digital controller designed to equip AC Infinity fans with smart controls for HVAC or growing applications.
• Dynamically adjusts fan speed based on temperature and humidity conditions to produce optimal airflow.
• Programming includes automated triggers, timers, cycles, scheduling, minimum speed, and custom transitions.
• Connect with our app via Bluetooth to unlock advance programs, set notifications, and view climate data.
• Supports up to two CLOUDLINE, AIRLIFT, or CLOUDWAY with EC motors to share the same programming.

PRODUCT DESCRIPTION

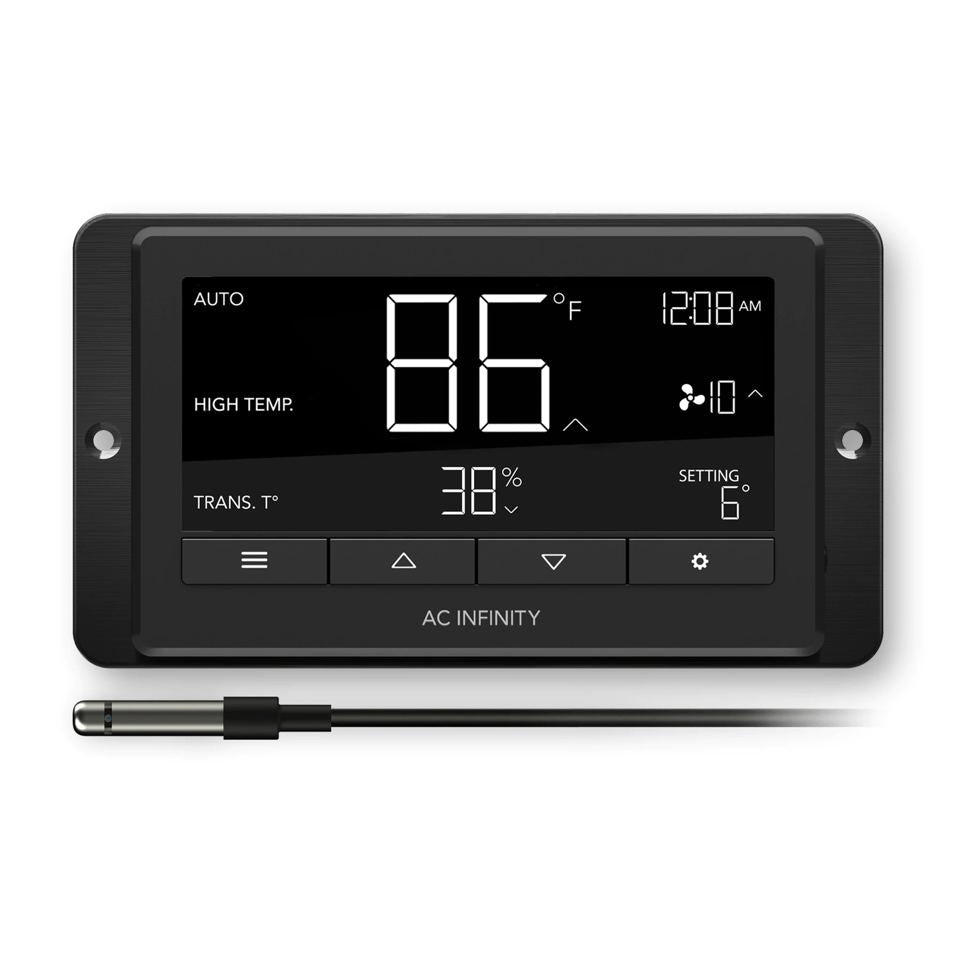

A digital controller designed to enhance your AC Infinity fan with smart controls to maintain a stable climate. This intelligent command unit features a black powder-coated body and a backlit LCD screen that presents a sleek aesthetic. The display has three brightness levels, as well as two auto brightness settings, and reads temperatures in Fahrenheit or Celsius. It includes a 12-foot sensor probe with a waterproof thermal-alloy head that accurately detects current temperature and humidity conditions. The controller’s 4-pin Molex fan ports can simultaneously power two fans to share the same fan speed and programming. Functions include automated triggers, timers, on/off cycling, and scheduling. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

INTELLIGENT PROGRAMMING

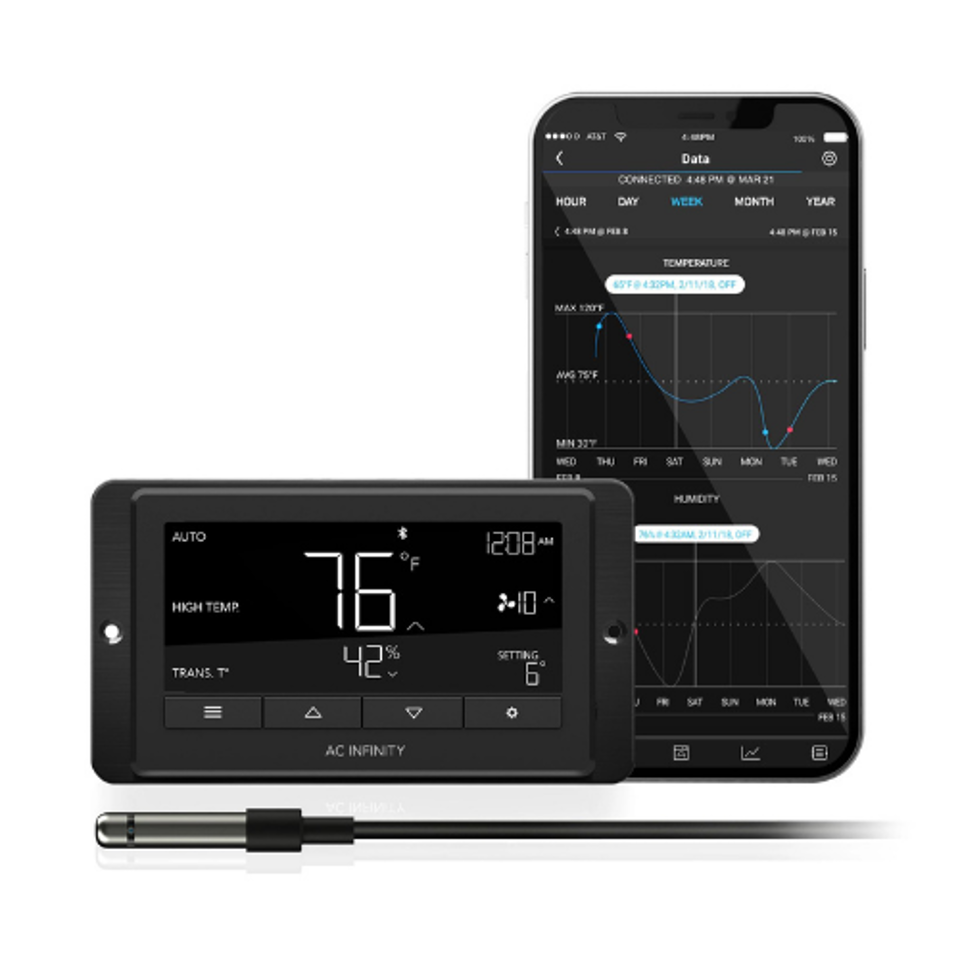

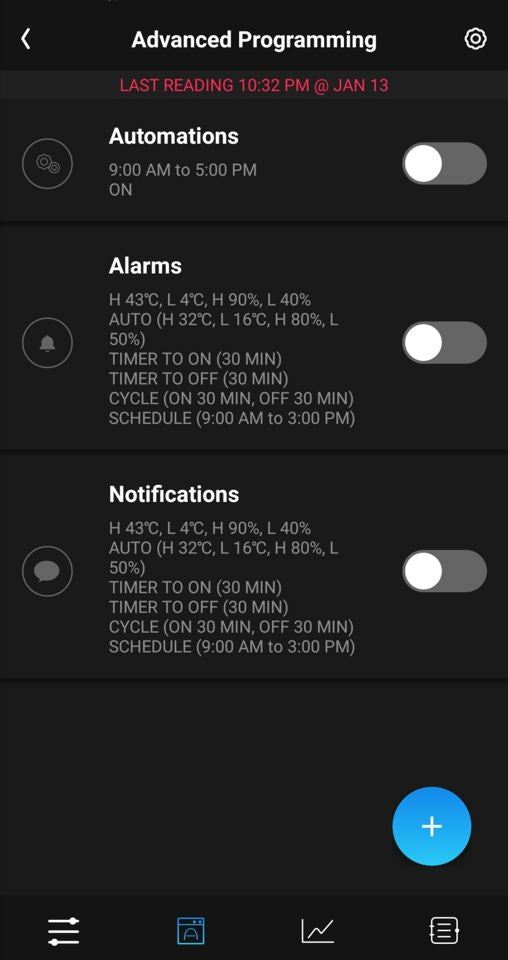

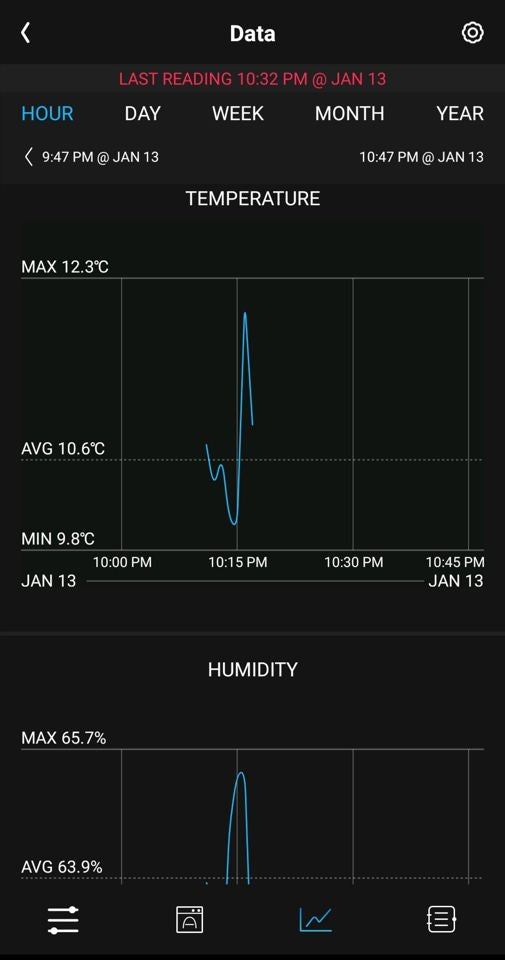

Features smart programming that not only has basic temperature and humidity triggers, but allows you to set dynamic fan speeds that would respond based on their changes. Go even further by setting a minimum speed that the fan will run at constantly and would only increase when triggered. Timer, cycle, and schedule modes add custom on-demand activation for a variety of uses. Securely connect with the AC Infinity App via Bluetooth to access your fan remotely, unlock advance programs, set notifications, view historical climate charts, and export CSV data.

COMPATIBILITY

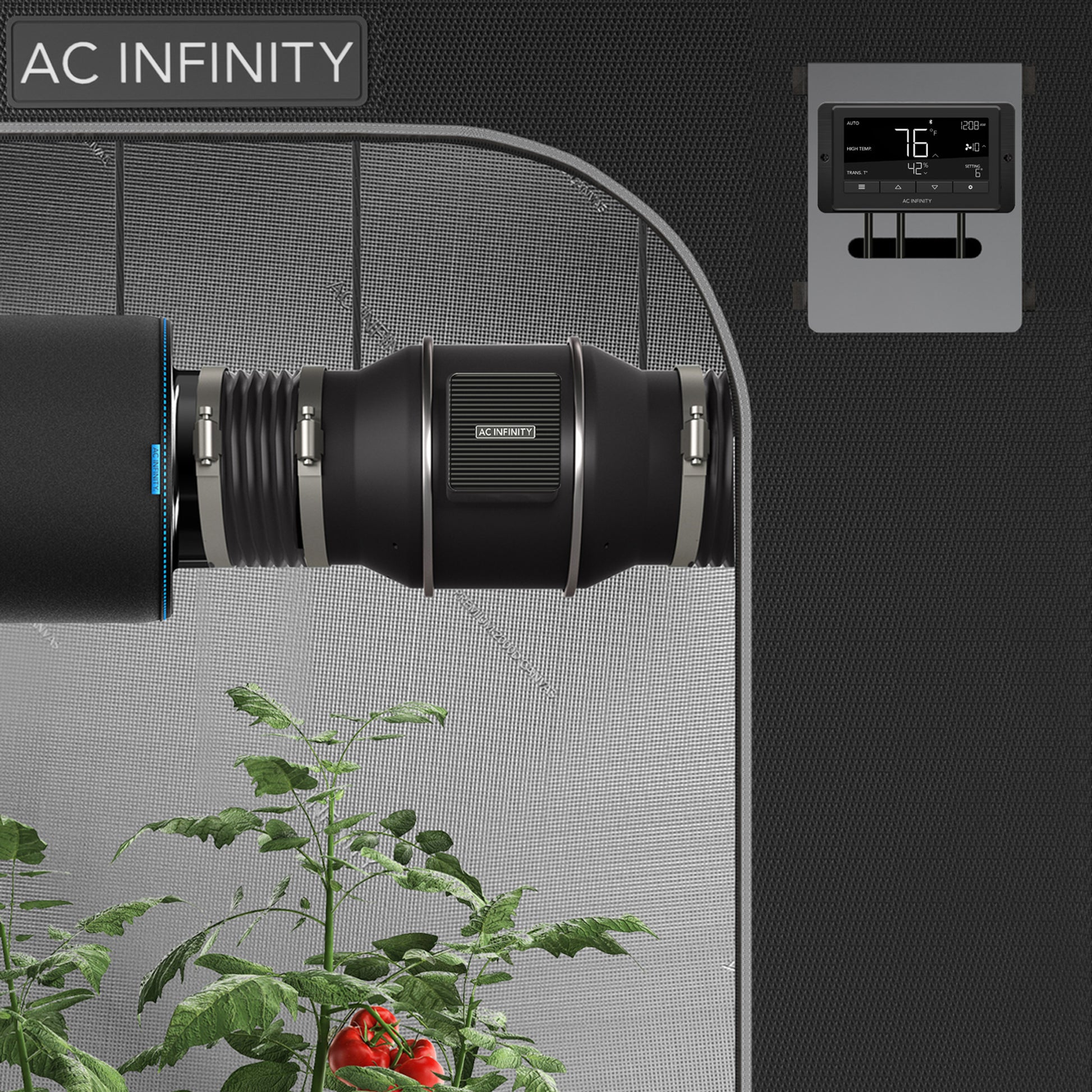

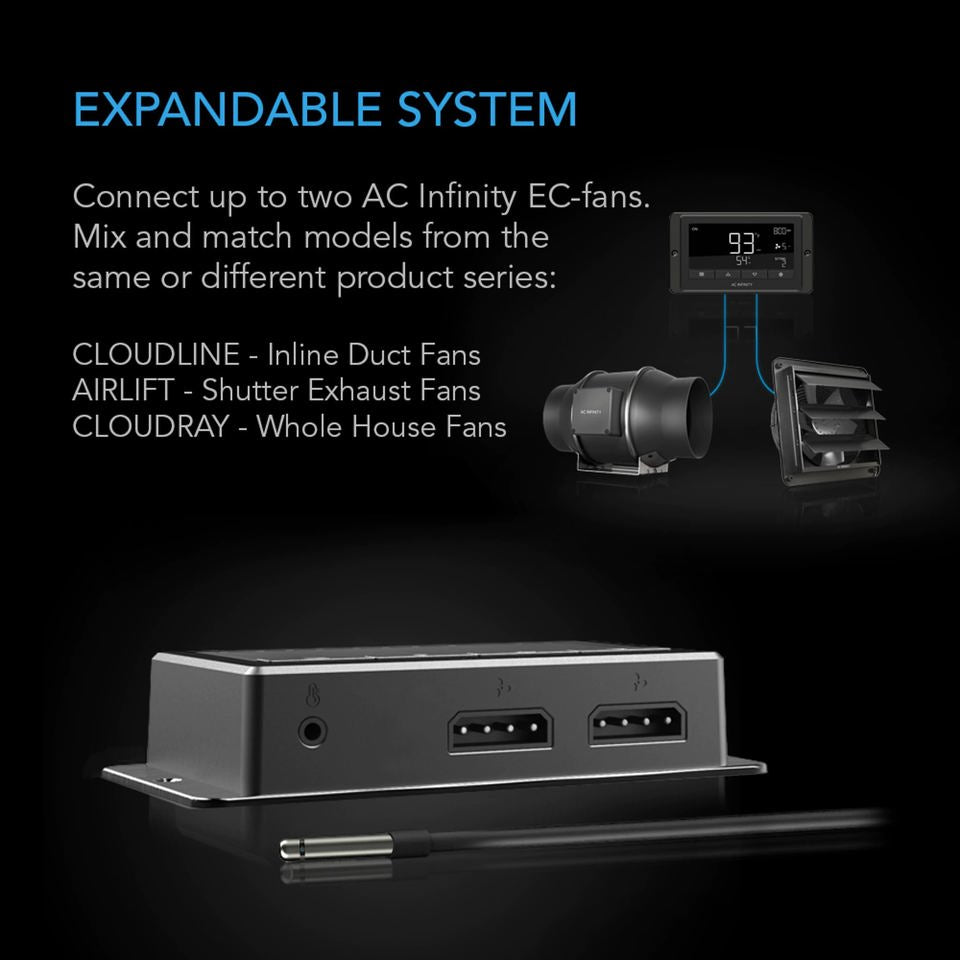

The built-in Molex ports allow you to pair two fans together to share the same programming and achieve more airflow. This intelligent controller is compatible with the following fans with EC motors:

• CLOUDLINE Series of Inline Duct Fans
• AIRLIFT Series of Shutter Exhaust Fans
• CLOUDWAY Series of Whole House Fans
• CLOUDRAY Series of Clip-on Circulation Fans (with Molex Adapter)

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	CONTROLLER 67
Product Model	CTR67A
UPC Code	819137021426

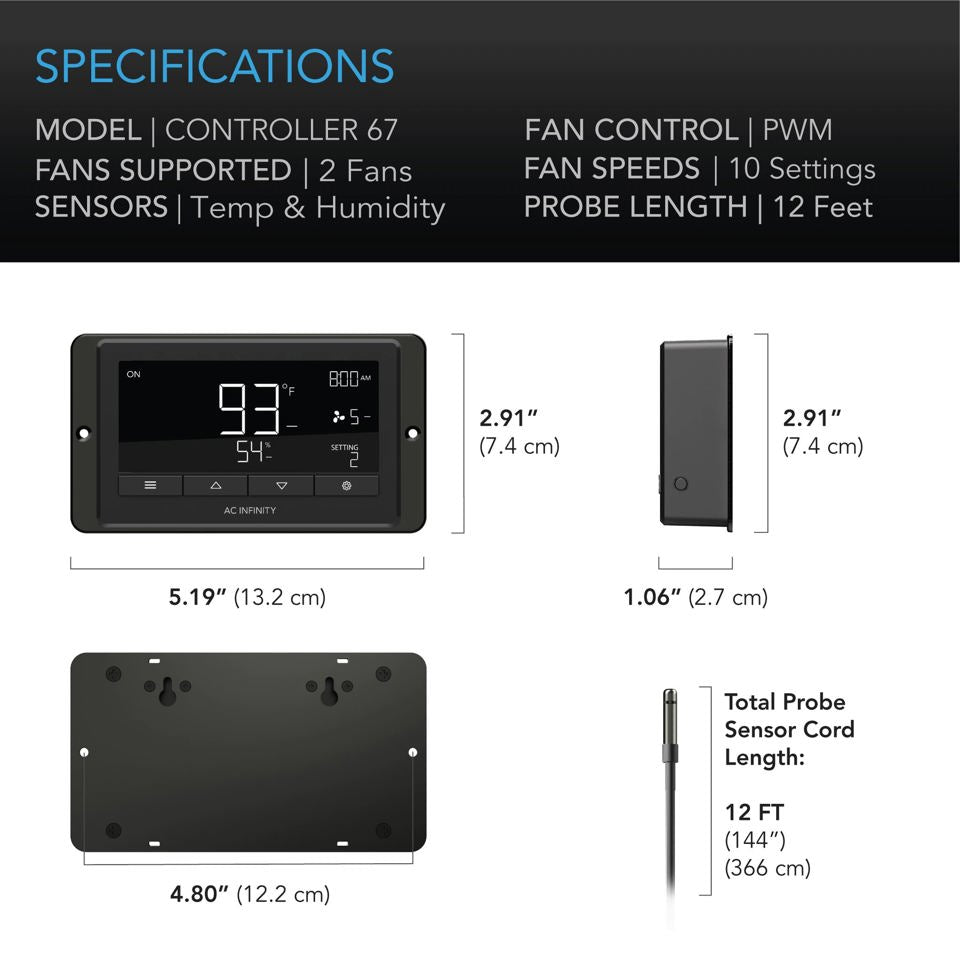

Product and Mounting Dimensions - Controller
Total Dimensions	5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
Hole to Hole Distance	4.71 x 2.64 in. (12.0 x 6.7 cm)
Screw Hole Size	Ø 0.119 in (Ø 0.3 cm)
Display Size	3.5 x 1.4 in. (9 x 3.5 cm)
Sensor Probe Length	144 in. (12 feet)
Product Performance and Technical Specs
Maximum Fans Controlled	2
Max Power Supported	10 W
Programming Temperatures	32 to 140°F
Operating Voltage	9 to 18V
Power	1 W
Current	0.1 A
Power Input	12V from Device
Operating Humidity	35 to 85% RH
FCC Cert. (Whole Product)	PDF
Product Manual
Product Manual	PDF
