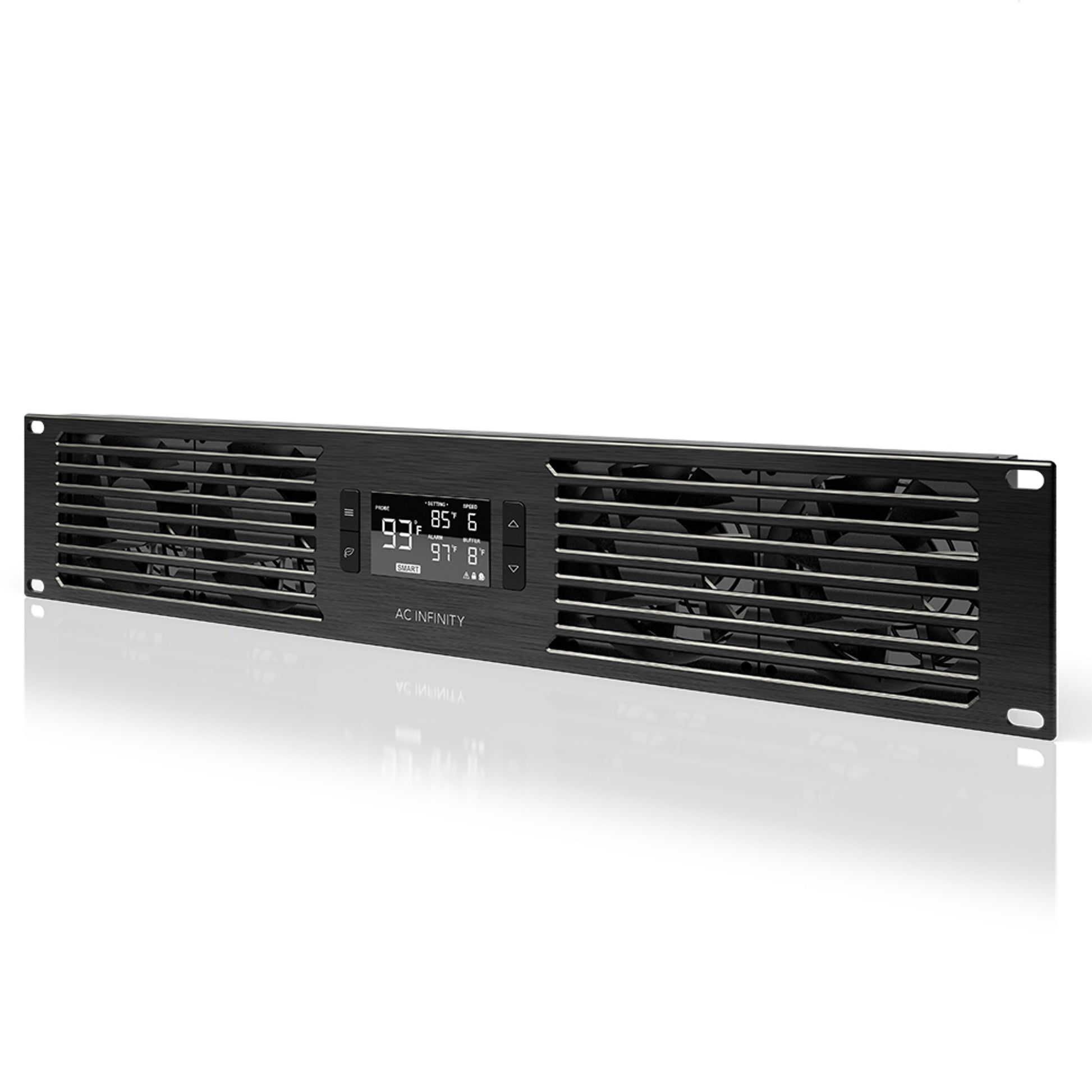

Cloudplate T7, Quiet Rack Cooling Fan System 2U, Exhaust

• An intelligent fan system designed for cooling audio video, DJ, server, network, and IT equipment racks.
• Protects rack-mount equipment from overheating, performance issues, and shortened lifespans.
• Programmable thermostat controller with automated speed control, alarm warnings, and backup memory.
• Premium anodized aluminum construction with CNC-machined detailing for a professional appearance.
• Size: 2U Rack Space | Design: Exhaust | Airflow: 50 to 220 CFM | Noise: 10 to 36 dBA | Bearings: Dual Ball

PRODUCT DETAILS

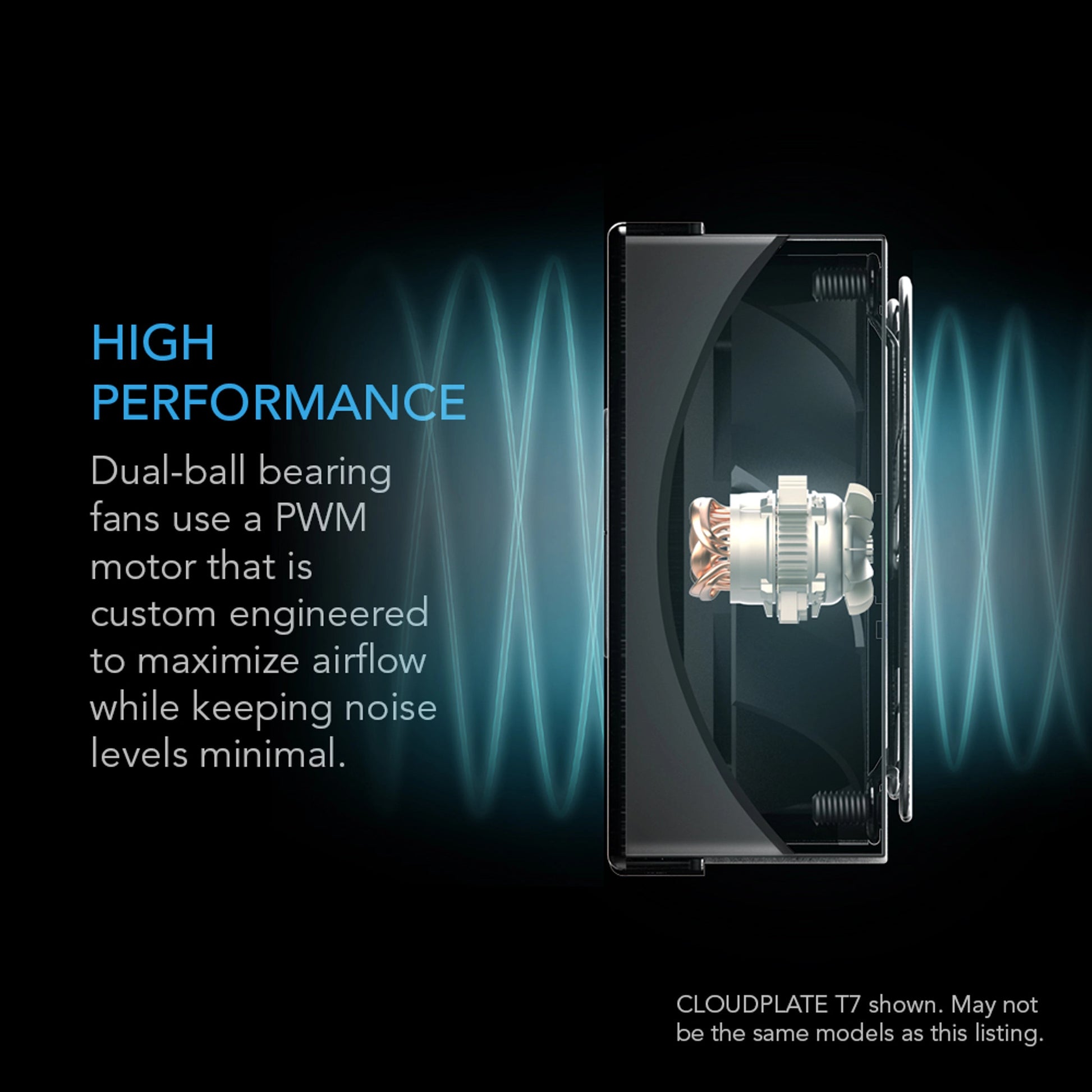

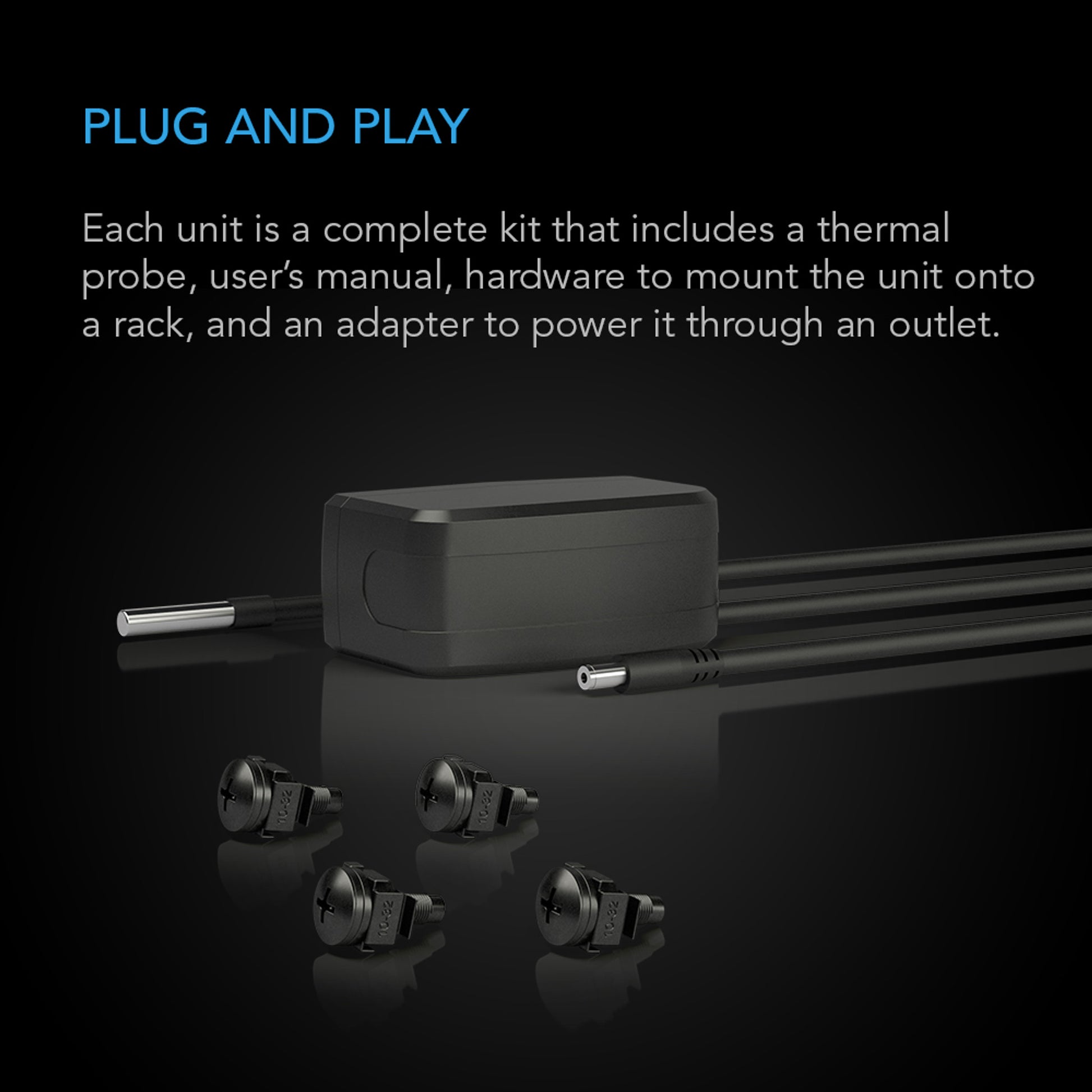

An intelligent cooling fan system designed to be mounted onto a wide range of 19-inch racks requiring quiet or high airflow cooling. Maintaining an optimal temperature for rack-mount equipment prevents overheating, ensures constant performance, and extends their lifespan. The LCD digital controller features a programmable thermostat with automated speed control, alarm warnings, status alerts, and backup memory. The system is housed in a solid aluminum construction that takes up two rack units of space (2U). Each aluminum frame is anodized with a light-brush finish, then the corners CNC-machined and edges symmetrically cut for a high-end professional appearance. This model holds four custom-engineered dual-ball bearing fans rated at 67,000 hours, and certified by CE and RoHS. The fans are set to exhaust out heated air and should be positioned near the top of the rack; an intake version of this model is available, sold separately. This complete kit includes the 2U fan unit, corded 6-ft thermal probe, user’s manual, rack mount screws, cage nuts, and corded 6-ft power supply.

INTELLIGENT COOLING

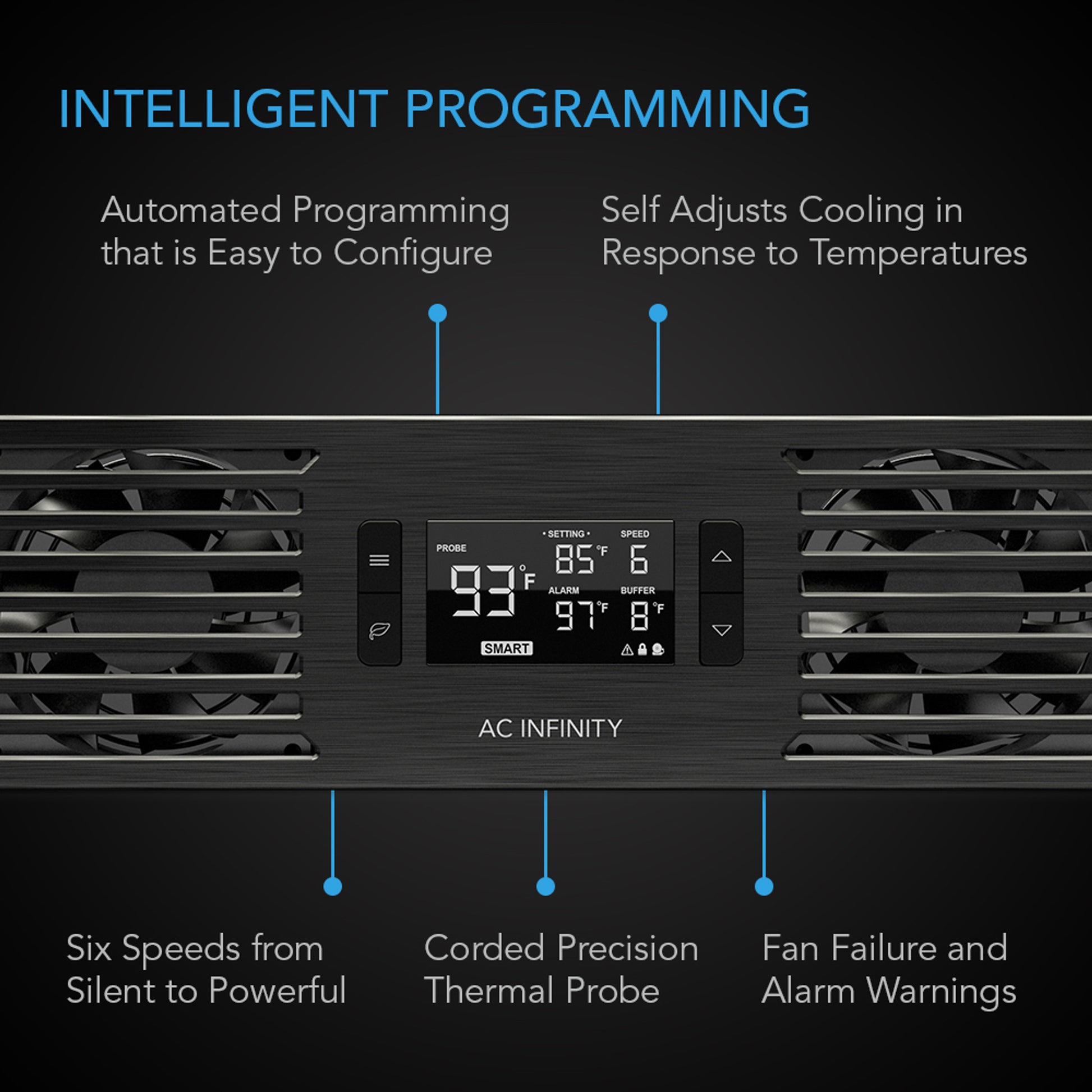

Programming includes an easy-to-use thermostat and a SMART mode that automatically adjusts the fan’s speed to react to varying temperatures. Additional features include alarm alerts, fan failure triggers, power savings setting, display lock, and backup memory. Six fan speeds are available with three screen brightness settings. Behind the unit is an expansion port that can control another CLOUDPLATE unit or an AC Infinity rack roof dual-fan kit.

PERFORMANCE AND APPLICATIONS

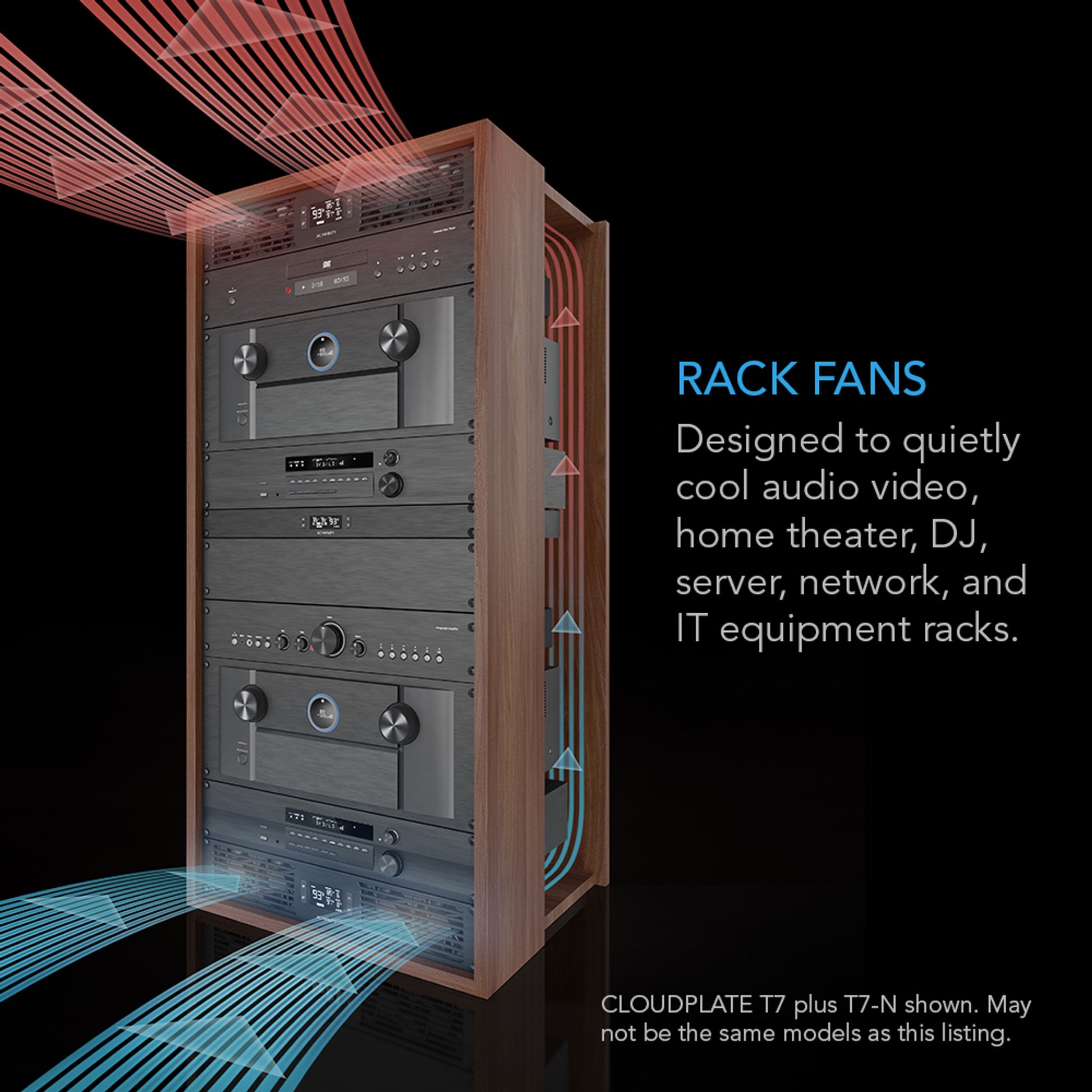

This 2U rack cooling system features programmable fan speed control, enabling it to work for a wide range of rack mount applications. With a noise level that can reach 10 dBA, the fan system can be used for environments where low or minimal noise is required such as home theater, studio, DJ, and audio video racks. A max airflow rating of 220 CFM will provide sufficient cooling to server, network, IT and equipment racks requiring high airflow. This fan system contains premium dual-ball bearings, allowing it to be mounted horizontally or vertically.

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	CLOUDPLATE T7
Product Model	AI-CP2L
UPC Code	854759004501

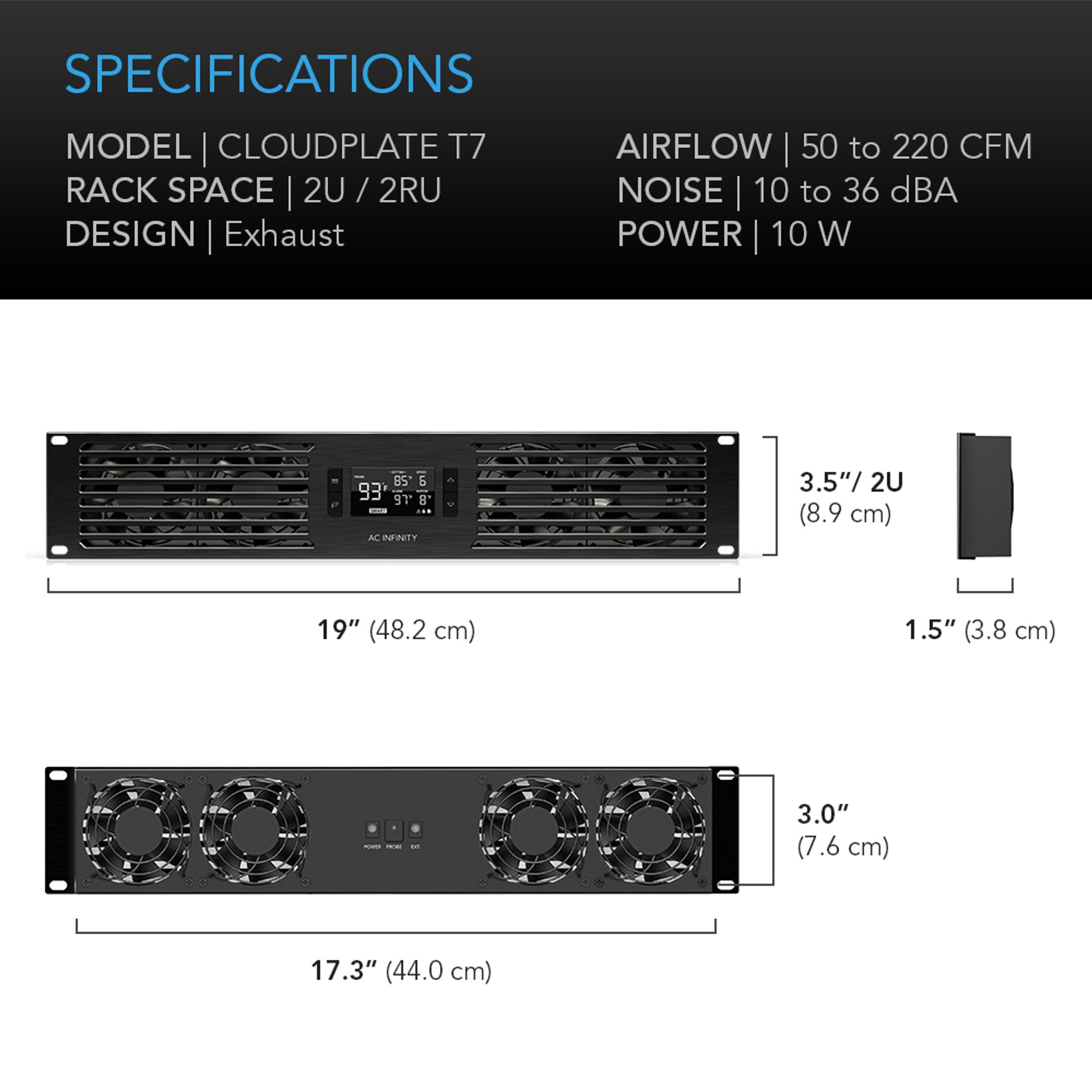

Product and Mounting Dimensions
Total Dimensions	19.0 x 3.5 x 1.5 in. (48.3 x 8.9 x 3.8 cm)
Rack Mount Size	Two Rack Units (2U)
Screw Hole Size	Ø .24 x 0.35 in. (Ø 6.1 x 9.0 mm) Obround
Hole to Hole Distance	18.2 x 3.0 in. (46.4 x 7.6 cm)
Display Size	2.25 x 1.25 in. (4.7 x 3.2 cm)
Probe Length	72 in. (6 feet)
Cord Length	72 in. (6 feet)
Product Performance and Technical Specs
Design	Exhaust
Total Airflow	50 to 220 CFM
Total Noise	10 to 36 dBA
Static Pressure	2.56 mm-H2O
Operating Voltage	12V DC
Power	10 W
Current	0.83 A
Wall Adapter Input	100 to 240V AC - Compatible UK adapter supplied
Operating Humidity	35 to 85% RH
Operating Temperature	0 to 158°F
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
UL Certification (Fans Only)	PDF
CE Certification (Whole Product)	PDF
RoHS Cert. (Whole Product)	PDF
Product Manuals
Fan Unit Manual	PDF
