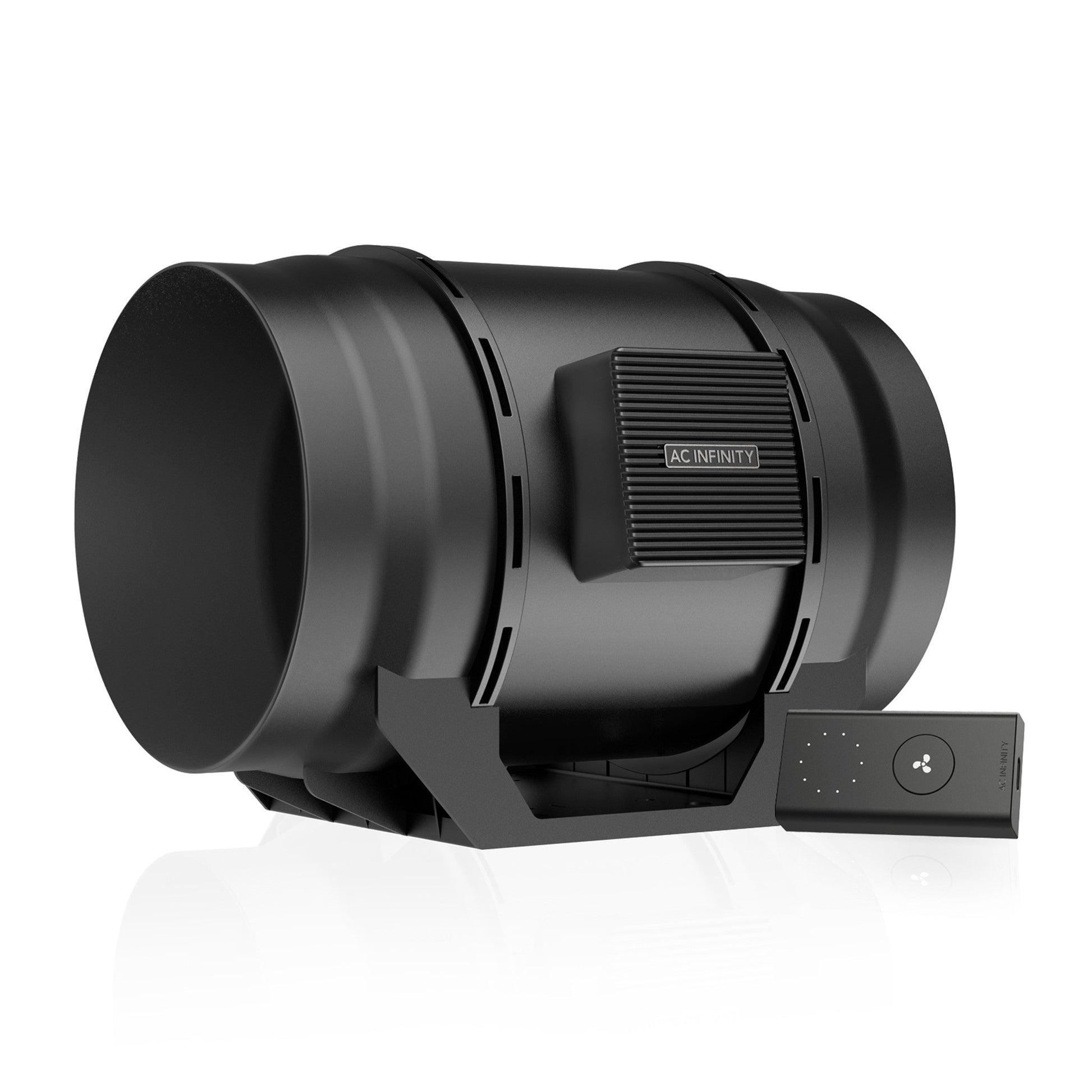

Cloudline Lite A8, Quiet Inline Fan With Speed Controller, 8-Inch

• Designed to quietly ventilate grow tents, exhaust odors, transfer heating/cooling to rooms, and cool AV closets.
• Features the same build quality and innovations as the CLOUDLINE Series delivered in a value package.
• Includes a wired 10-speed fan controller; also compatible with all CLOUDLINE Series smart controllers.
• Mixed flow design combined with an EC-powered motor for a truly quiet and energy efficient performance.
• Duct Size: 8" | Dimensions: 12.2 x 10 x 9.4 in. | Airflow: 724 CFM | Noise: 42 dBA | Bearings: Dual Ball

PRODUCT DESCRIPTION

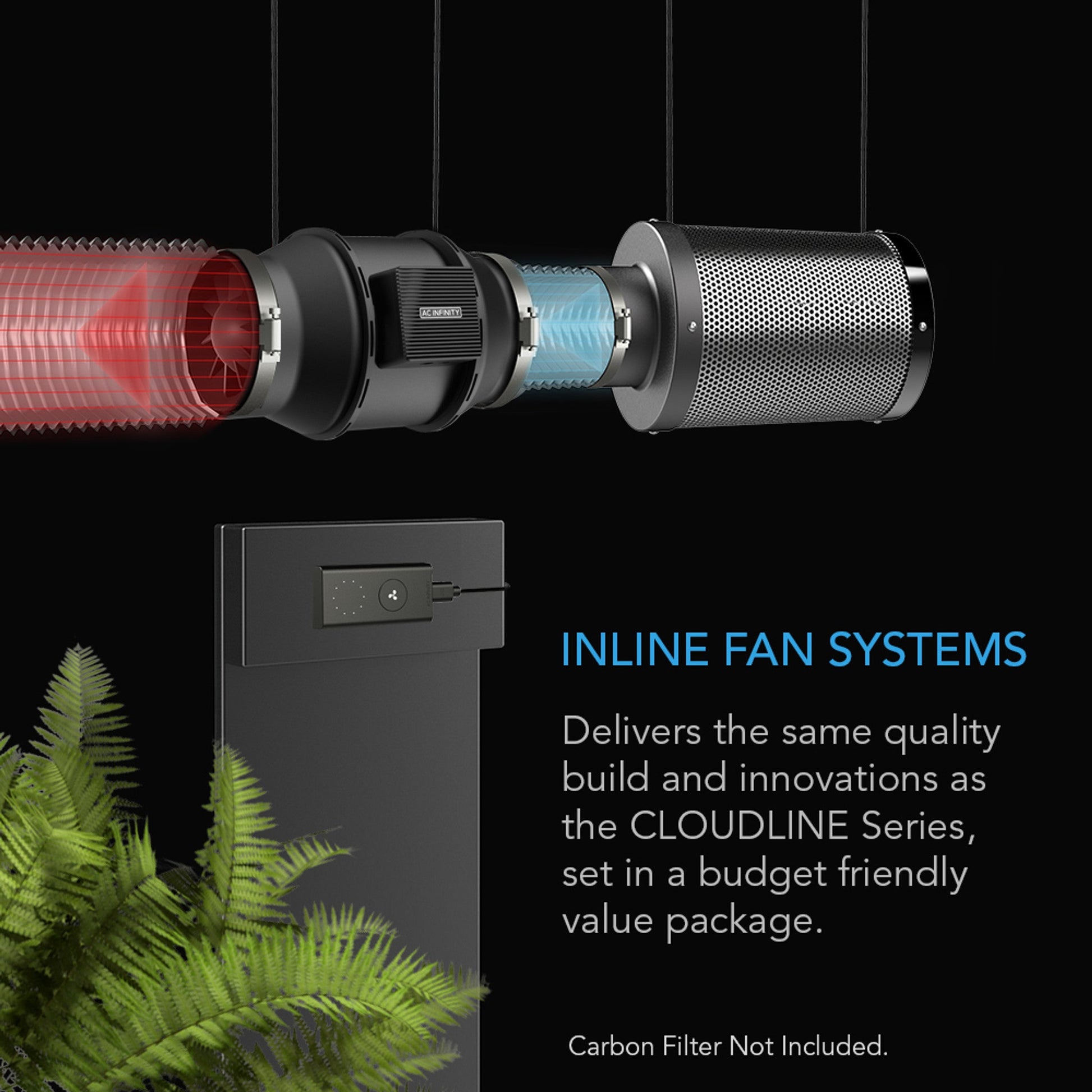

This inline fan system packs the CLOUDLINE’s core innovations and premium build quality together to bring you a value package. Designed to quietly cool grow tents, rooms, and closets, and provide ventilation in various air circulation and exhaust projects. Containing an inline mixed-flow design, the duct fan can maintain airflow even in high static pressure applications. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. Complete kit includes one inline fan unit, one speed controller, UIS to 4-pin Molex dongle, installation manual, and all necessary mounting hardware. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

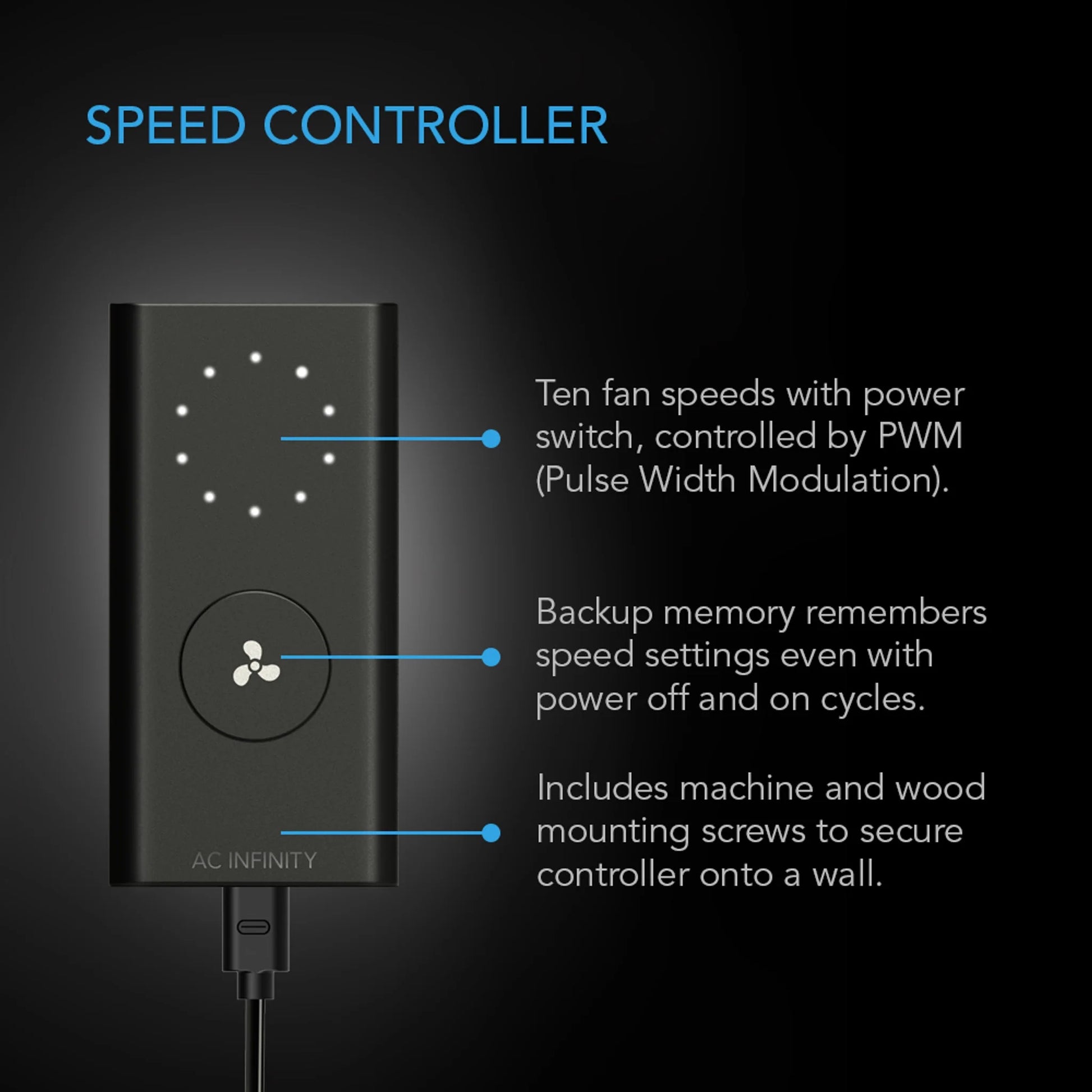

PRECISE SPEED CONTROLLER

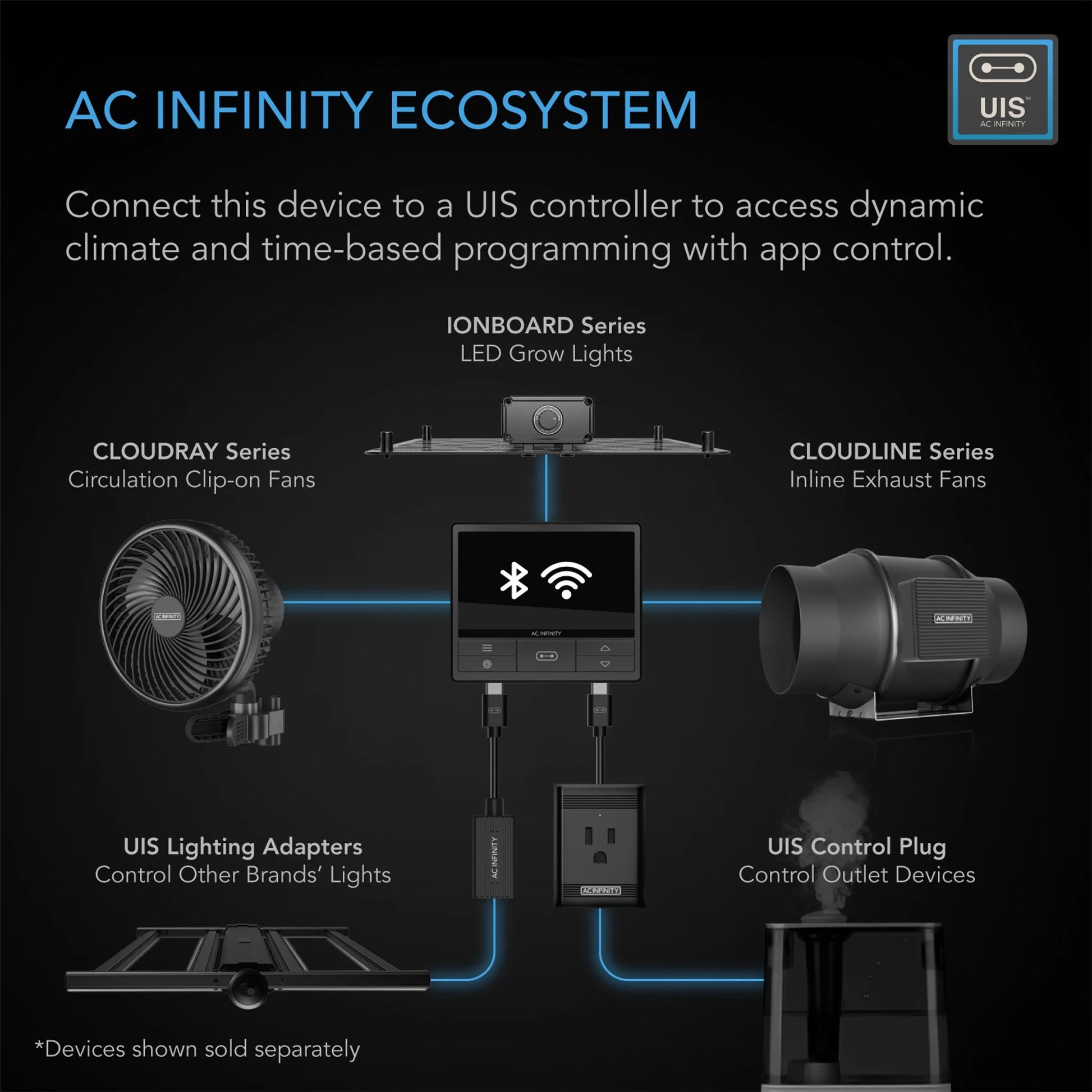

The speed controller enables you to set the duct fan’s speed to optimal noise and airflow levels for various environments. This inline fan is equipped with the CLOUDLINE Series’ same EC-motor that is precisely controlled using PWM (Pulse Width Modulation), which enables it to run smoothly at extremely low RPM speeds without generating motor noise. Ten speed options are available with power switch and backup memory. This model can be connected to the following smart controllers to share the same programming and power source as other EC-motor CLOUDLINE fans:

• CONTROLLER 69
• CONTROLLER 67

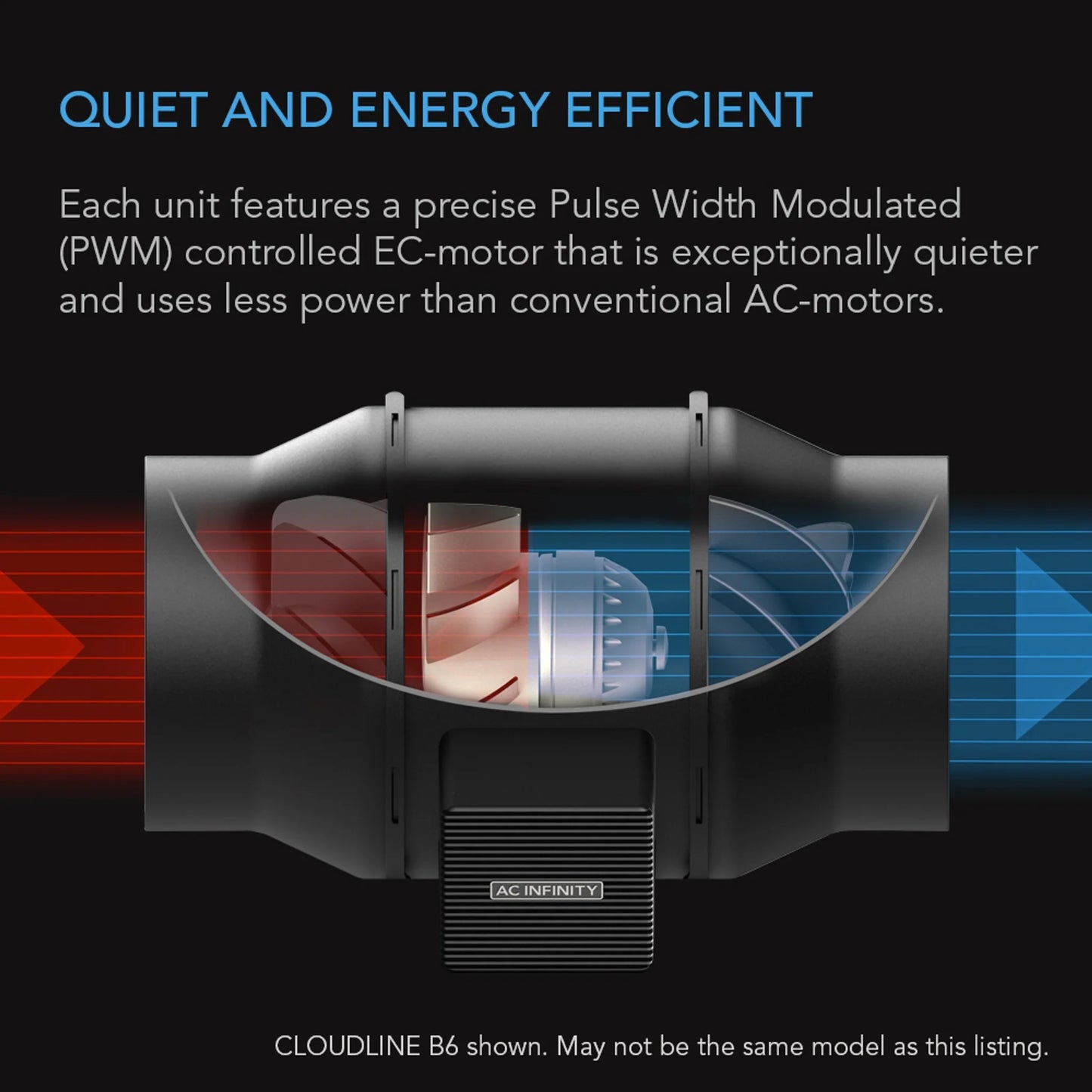

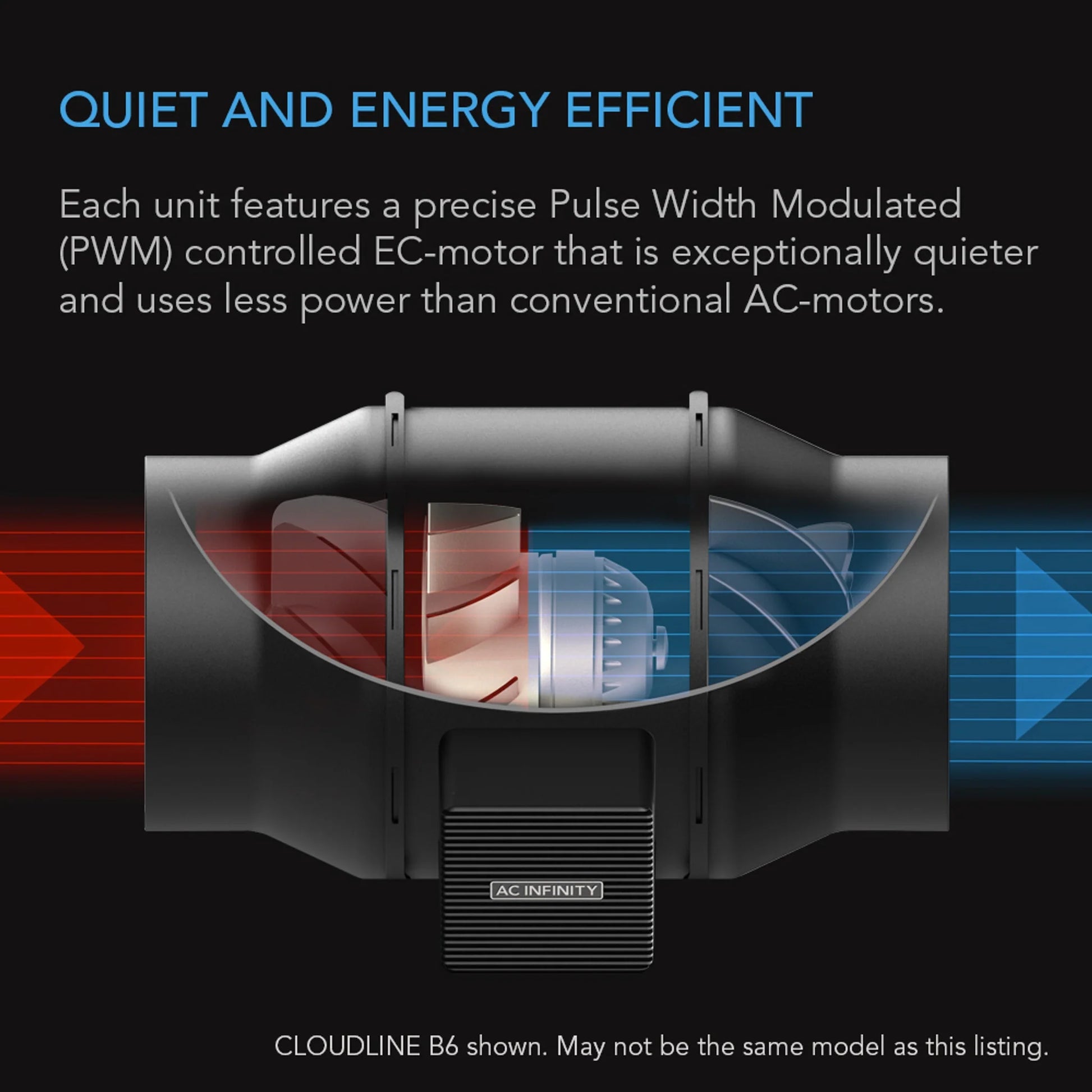

QUIET AND ENERGY EFFICIENT DESIGN

The inline fan features a mixed flow design using a stator blade and dual hydrodynamic wind circles. This gives it a high static pressure rating, enabling it to deliver airflow even in applications where air movement is being restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction. In addition, the inline fan is crafted with a plastic mounting base to diminish noise as a result of fan vibration. The unit is IP44 rated to be highly resistant to dust and liquids and performs well even in harsh environments.

APPLICATIONS

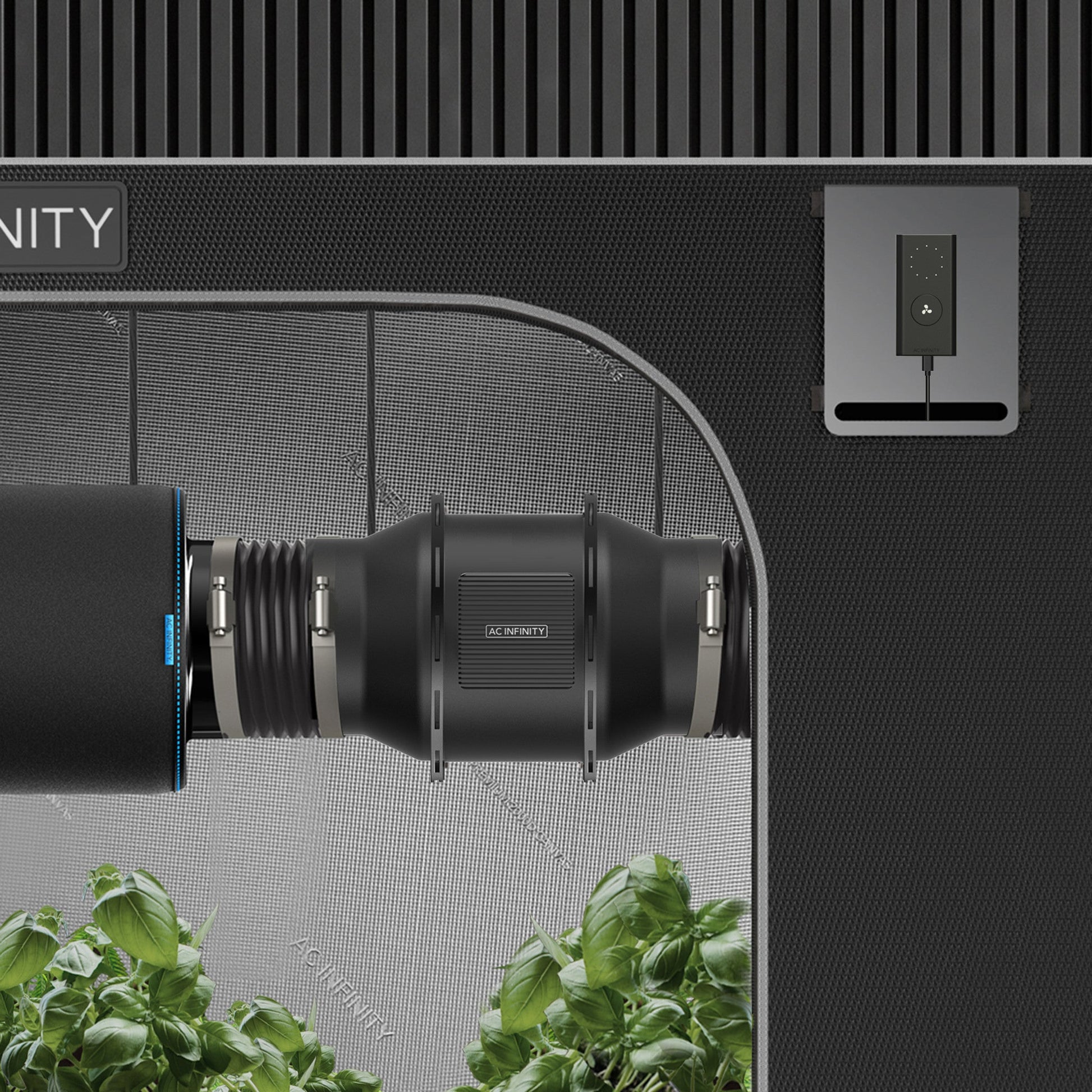

This quiet inline fan system is most found in hydroponic grow tents and rooms to provide cooling and ventilation for plants. Its low noise and advanced control features make it fit for bathroom and attic settings, as well as cooling AV equipment rooms, closets, racks, and cabinets.

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	CLOUDLINE A8
Product Model	AI-CLA8
UPC Code	819137021761

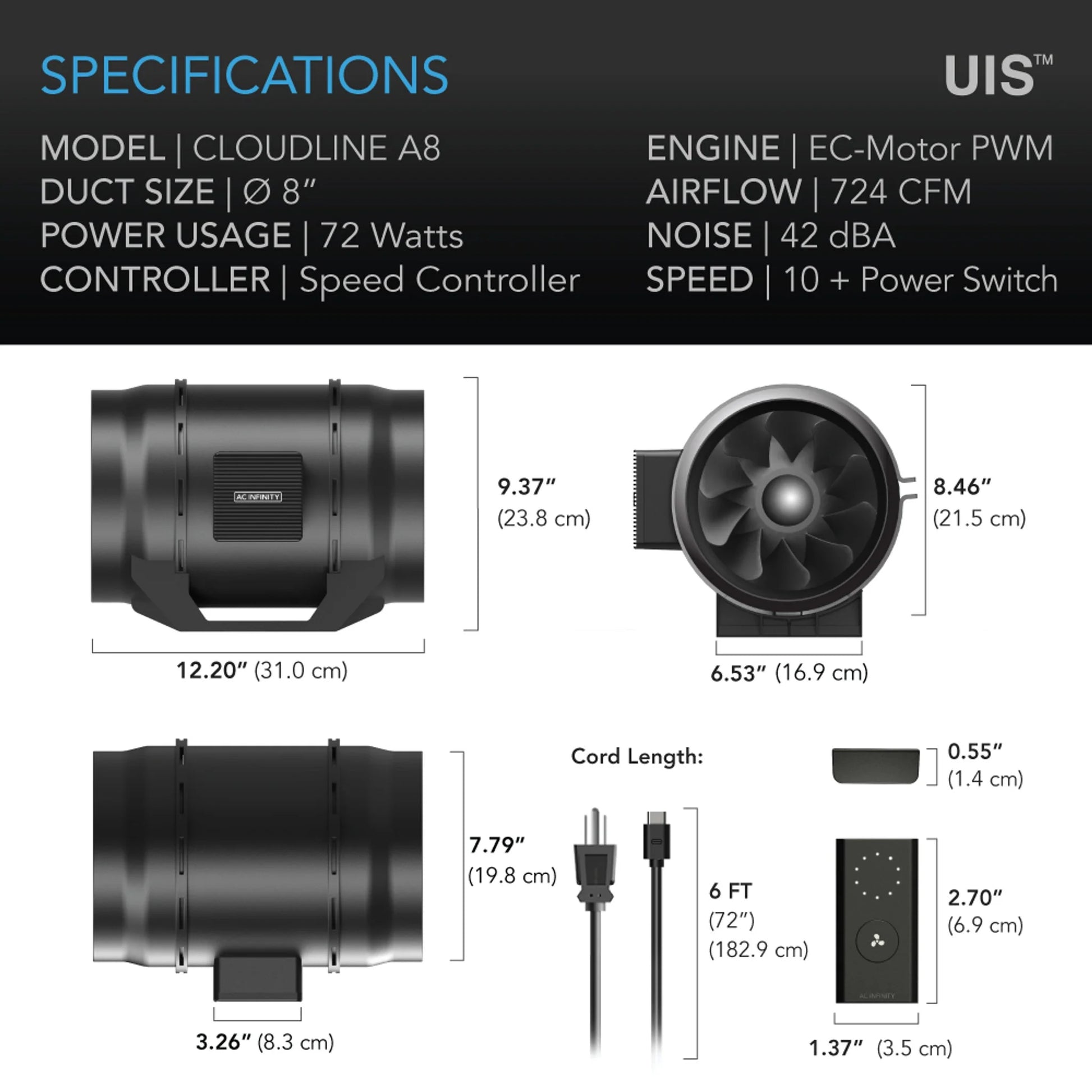

Product and Mounting Dimensions - Fan Unit
Duct Size	8"
Total Dimensions	12.20 x 10 x 9.37 in. (31 x 25.4 x 23.8 cm)
Mounting Hole-To-Hole Distance	3.54 x 1.96 in. (9.0 x 5.0 cm)
Screw Hole Size	Ø 0.217 in. (Ø 0.55 cm)
Cord Length to Controller	72 in. (6 feet)
Cord Length to Plug	72 in. (6 feet)
Product and Mounting Dimensions - Controller
Total Dimensions	2.70 x 1.37 x 0.55 in. (6.9 x 3.5 x 1.4 cm)
Product Performance and Technical Specs
Total Airflow	724 CFM
Total Noise	42 dBA
Static Pressure	746 Pa
Voltage	100-240V AC
Frequency	50/60Hz
Max Power Draw	99 W
Average Power Usage	72 W
Current	2.27 A
Power Connector Type	UK BS1376 Plug / Plug Converter
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Ingress Protection	IP 44
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
Fan Quality Approvals	CE, RoHS
CE Certification (Whole Product)	PDF
RoHS Cert. (Whole Product)	PDF
Product Manual
Product Manual	PDF
