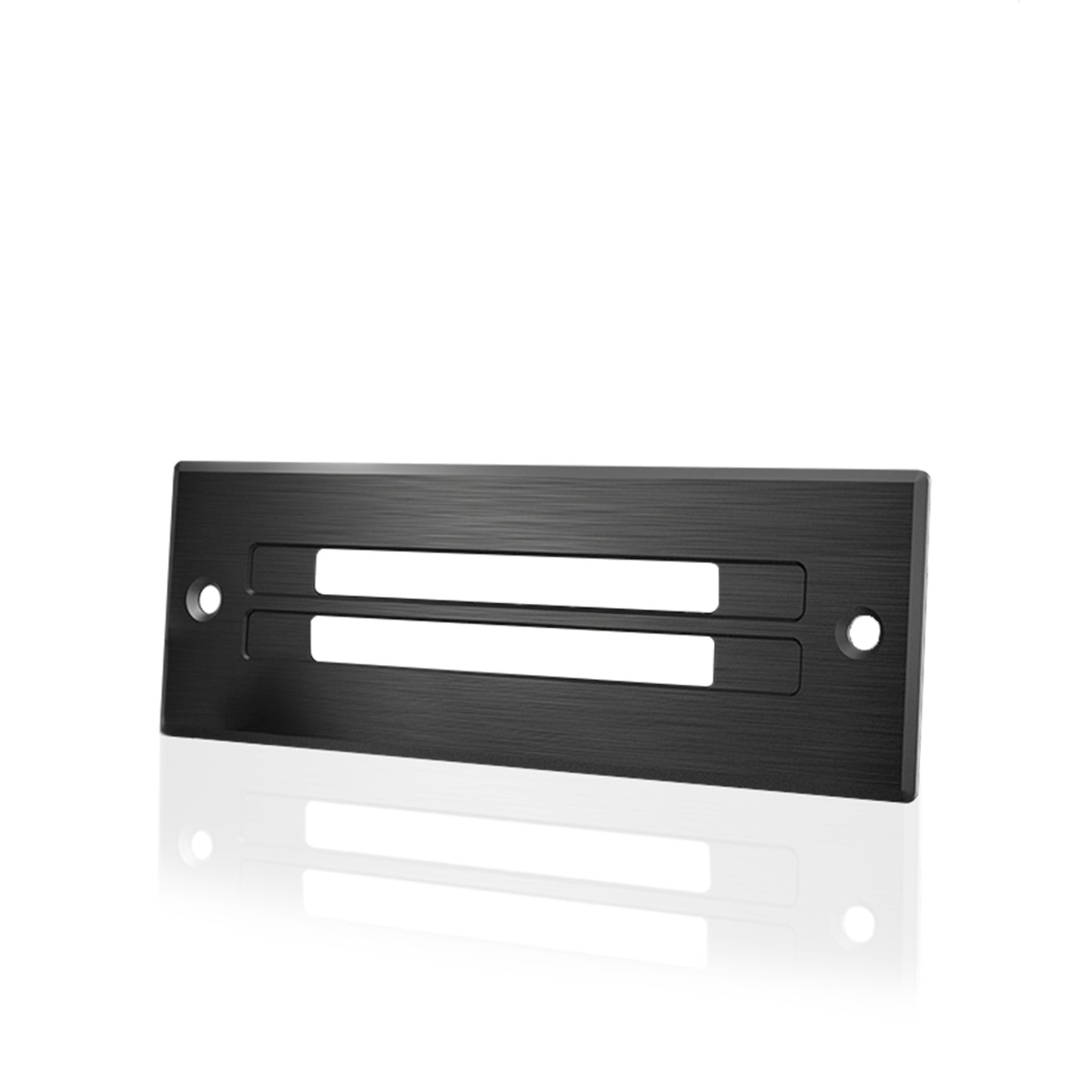

Cabinet Ventilation Grille Black, 6 Inch Low-Profile

AI-MFB2

• Designed to be installed into cabinets or walls to help increase ventilation.
• Can also be used in conjunction with a fan system to act as an intake or exhaust vent.
• Ultra slim low-profile design enables the grille to fit into toe-kicks and other low-clearance areas.
• Features a CNC machined aluminum frame, with a brushed black finish and flat screw heads.
• Kit includes (2) wood mounting screws and (2) machine mounting screws with nuts.

PRODUCT DESCRIPTION

The Cabinet Ventilation Grille is a 5.9 by 2.0 inch metal grille that can be installed into cabinets and walls to help increase ventilation. The frames can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. To mount the grille into your cabinet or wall, you would need to cut a square hole approximately 3.42 by 2.28 inches. Features a CNC machined anodized aluminum frame with a brushed black finish and matching flat-head screws. Information on the additional included hardware can be found below.

HARDWARE

Includes two wood screws and two machine screws with nuts to mount the ventilation grille onto a cabinet or wall. All mounting screw heads are black to match the mounting frame.

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	VENT GRILLE BLACK 2
Product Model	AI-MFB2
UPC Code	819137020139
Product and Mounting Dimensions
Total Dimensions	5.9 x 2.0 x 4.8 in (15 x 5.1 x 12.2 cm)
Required Mounting Hole	4.75 x 1.25 in (12.1 x 3.18 cm)
Hole to Hole Distance	5.12 in (13 cm)
Screw Hole Size	Ø 0.197 in (Ø 0.5 cm)
Mounting Template	PDF
Product Performance and Technical Specs
Number of Mountable Fans	1
Frame Type	Wall Mount
Mountable Models	AIRPLATE S2
