Airplate S9, Home Theater And Av Cabinet Quiet Cooling Fan System, 18 Inch

AI-APS9

• An ultra-quiet UL-certified fan system designed for cooling cabinets that requires minimal noise.
• Features a multi-speed controller to set the fan’s speed to optimal noise and airflow levels.
• Contains a CNC machined aluminum frame with a modern brushed black finish.
• Powered by wall outlet or USB port, included Turbo Wall Adapter increases performance by 25%.

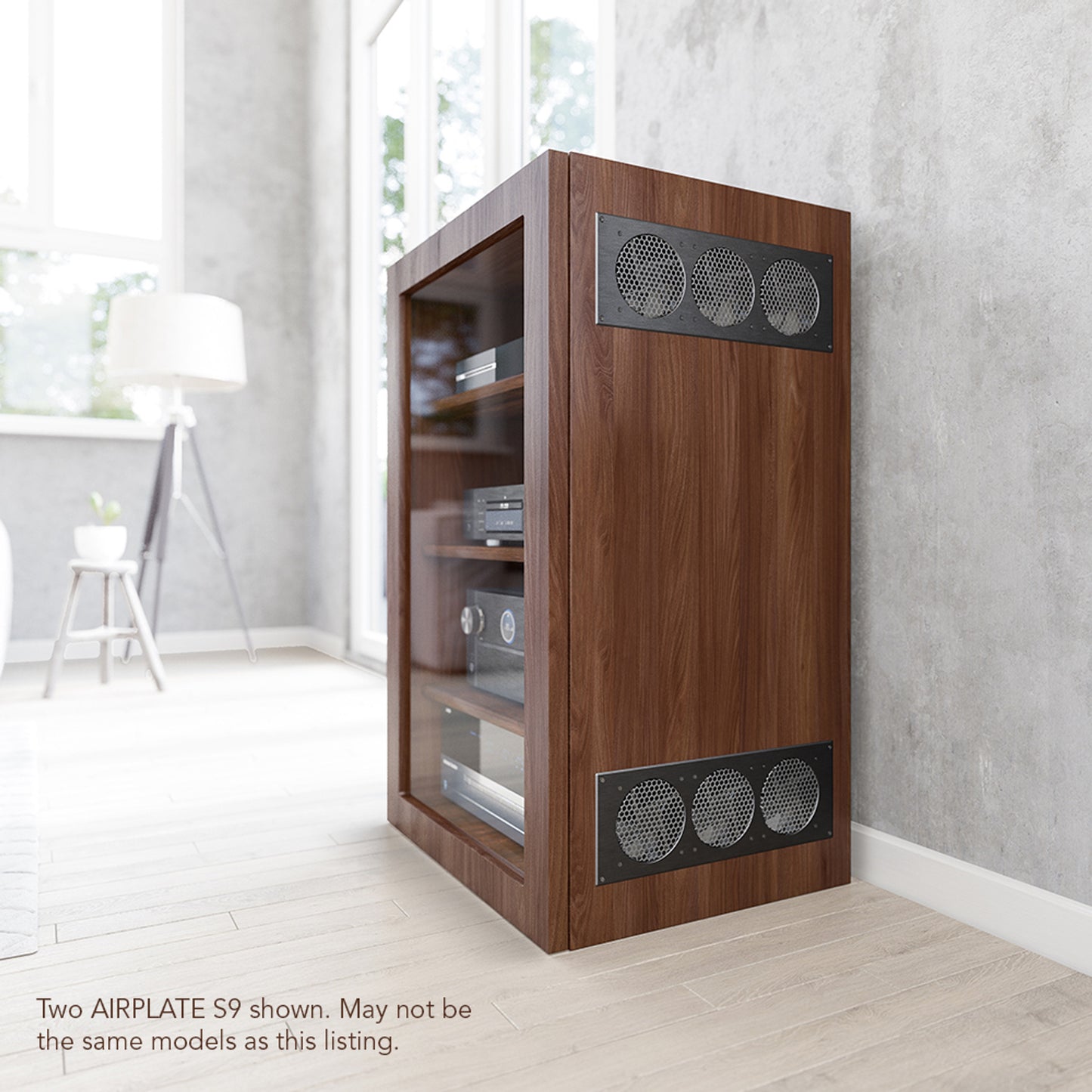

• Dimensions: 17.28 x 6.30 x 1.3 in. | Total Airflow: 156 CFM | Total Noise: 21 dBA | Bearings: Dual Ball

PRODUCT DESCRIPTION

The ultra-quiet fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. Features a speed controller and 6 foot power cord. Included fans use a custom motor engineered to minimize noise during speed variations and are certified by CE and RoHS. Contains AC Infinity axial fans ACX-FD1225(B)05W5 which meet UL-507 standards for safety under Underwriters Laboratories certificate E503903. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminum frame with a modern brushed black finish. Fans are set to exhaust air out the frame but this can be reversed to intake air using a screw driver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through an USB port or standard wall outlet.

SPEED CONTROLLER AND BOOST ADAPTER

The in-line multi-speed controller with power switch allows setting the fan’s speed to optimal noise and airflow levels for various environments. The included Boost Adapter not only allows the fan to be powered through a wall outlet, but increases its performance by up to 25%.

CONNECTING ADDITIONAL UNITS

For cabinets that requires more airflow, each unit can be connected to additional AIRPLATE S and T series cabinet fans. Up to four fans can share the same USB power source; and up to six fans can share the same thermal controller or wall outlet power source. AIRPLATE S7 contains two fans and AIRPLATE S9 contains three fans. All setups with more than four daisy-chained fans must have their inline speed controller set to high to prevent overload, e.g. two AIRPLATE S9 units daisy-chained together.

APPLICATIONS

This ultra-quiet cooling system is popular in a variety of applications including home theaters, entertainment centers, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	AIRPLATE S9
Product Model	AI-APS9
UPC Code	854759004549
Product and Mounting Dimensions - Fan Unit

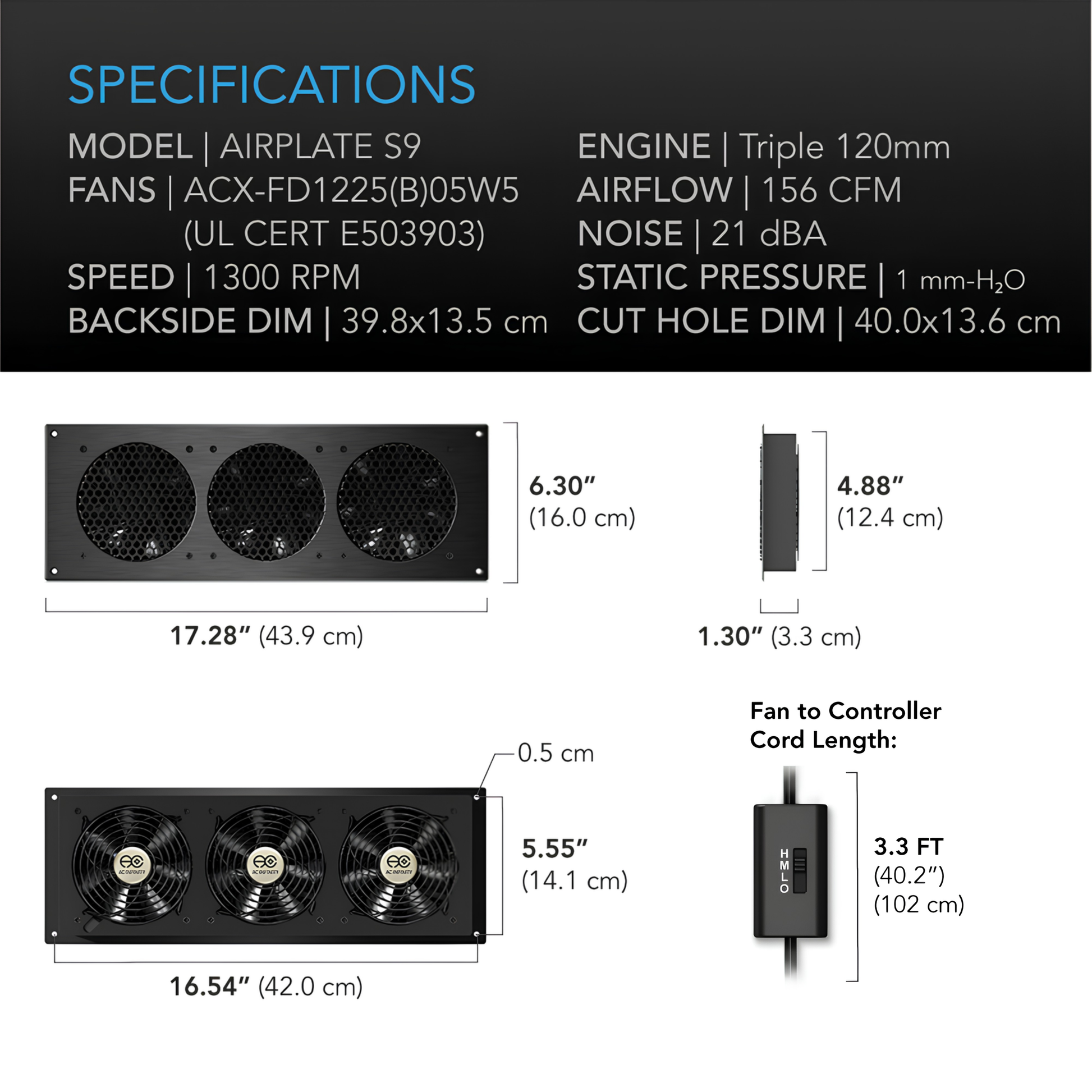

Total Dimensions	17.28 x 6.30 x 1.30 in (43.9 x 16.0 x 3.3 cm)
Backside Enclosure Dimensions	15.67 x 5.31 in (39.8 x 13.5 cm)
Required Mounting Hole	15.75 x 5.35 in (40.0 x 13.6 cm)
Hole to Hole Distance	16.54 x 5.25 in (42.0 x 13.6 cm)
Screw Hole Size	Ø 0.197 in (Ø 0.5 cm)
Cord Length	72 in (6 feet)
Mounting Template	PDF
Product Performance and Technical Specs
Total Airflow	156 CFM
Total Noise	21 dBA
Static Pressure	1 mm-H2O
Operating Voltage	3 to 7V DC
Power	3.6 W
Current	1.56 A
Wall Adapter Input	100 to 240V AC
Operating Humidity	35 to 85% RH
Operating Temperature	0 to 158°F
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
Fan Quality Approvals	UL, CE, RoHS
UL Certification (Fans Only)	PDF
CE Certification (Whole Product)	PDF
RoHS Cert. (Whole Product)	PDF
Product Manuals
Fan Unit Manual	PDF
