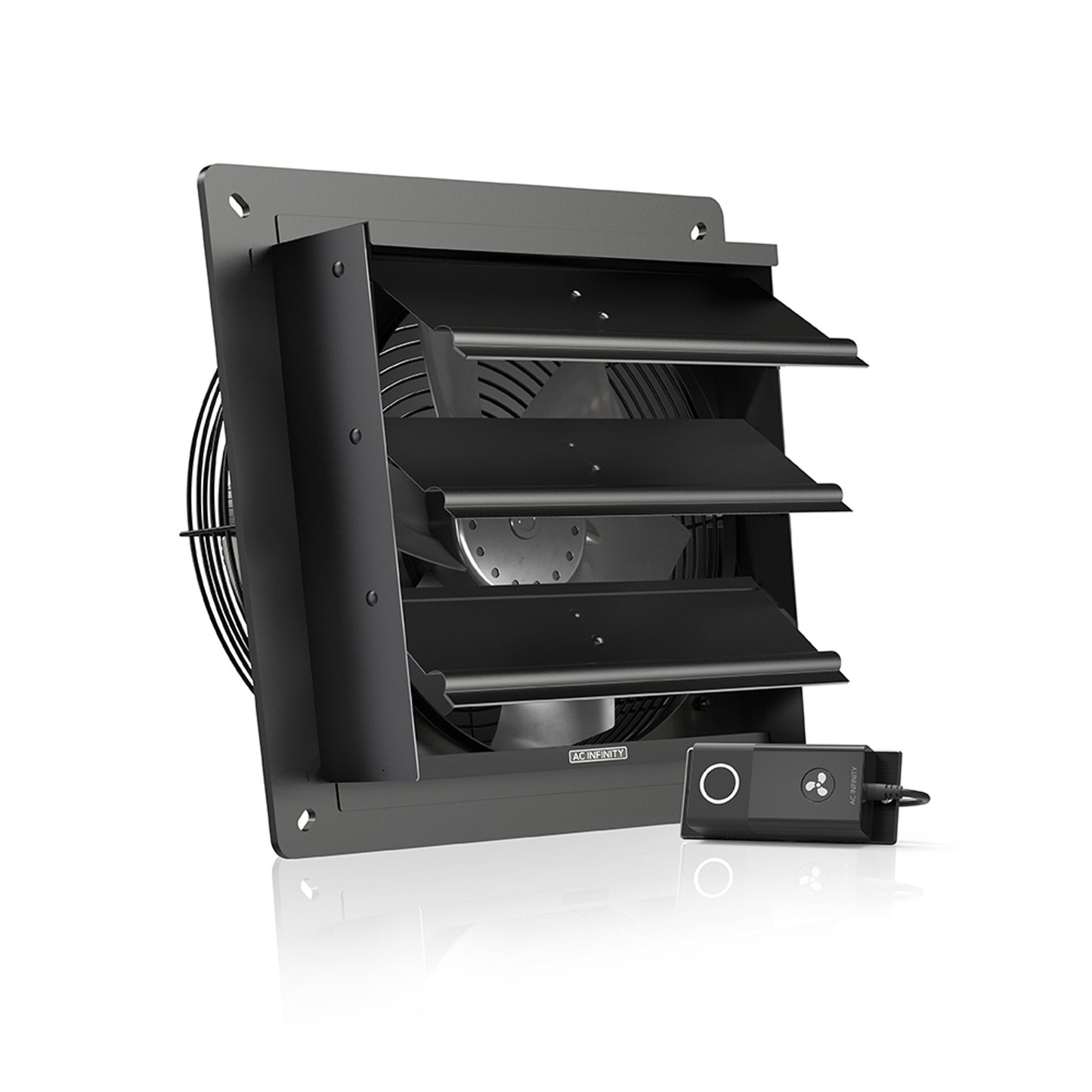

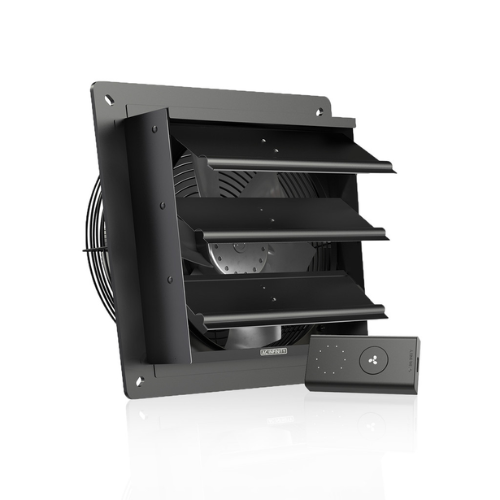

Airlift S10, Shutter Exhaust Ventilation Fan 10", Speed Controller

AC-ALS10

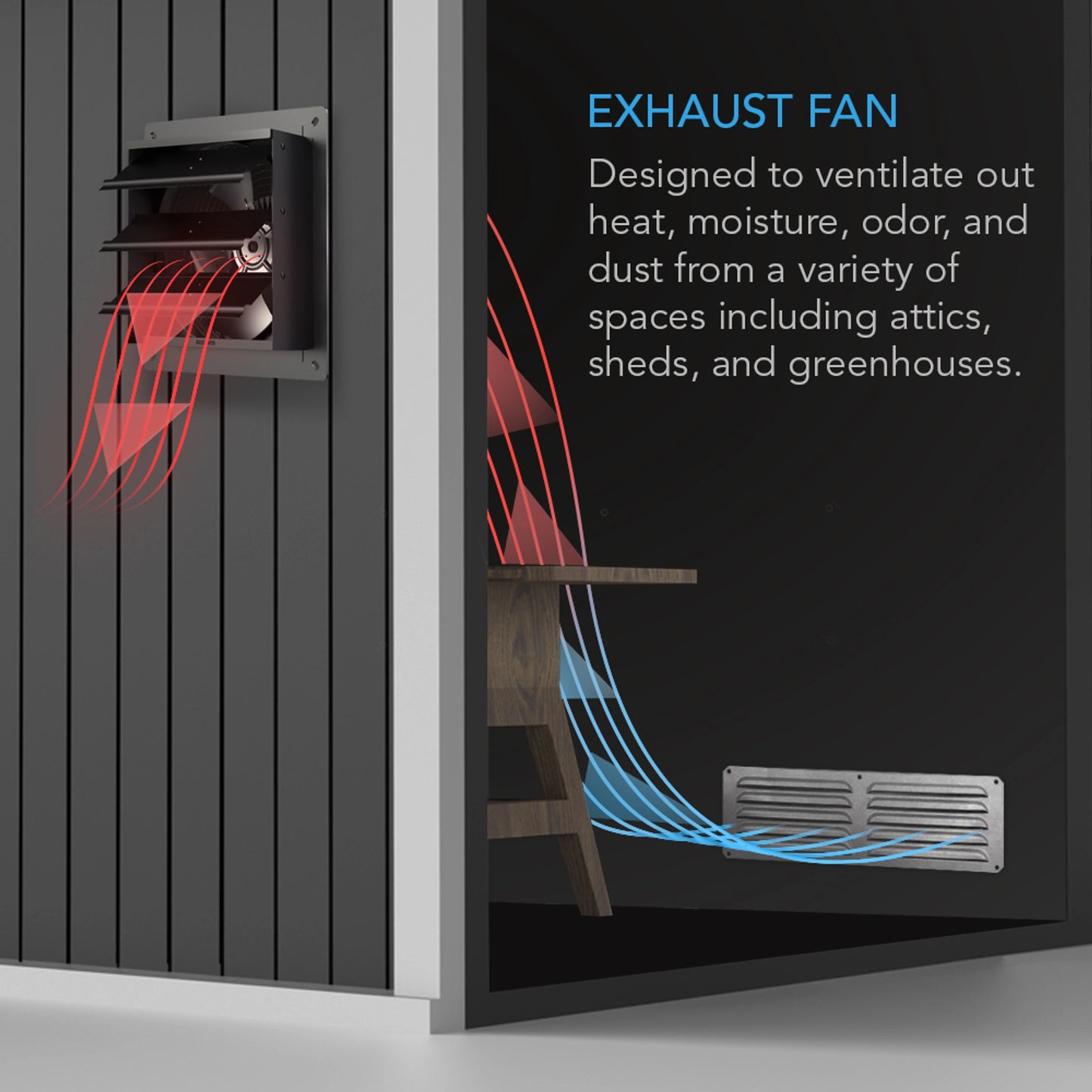

• A high-airflow exhaust fan designed to ventilate out heat, moisture, odor, and dust from various spaces.
• Features an 8-speed manual controller utilizing PWM. See T-Series for temperature and humidity controls.
• Innovative EC-motor with PWM-control maximizes airflow while reducing energy consumption and noise levels.
• Features steel shutters, aluminum blades, and IP-44 rated to be highly resistant to liquid and dust.
• Fan Size: 10” | Dimensions: 13.0 x 13.0 x 7.79 in. | Airflow: 631 CFM | Noise: 67 dBA | Bearings: Dual Ball

PRODUCT DESCRIPTION

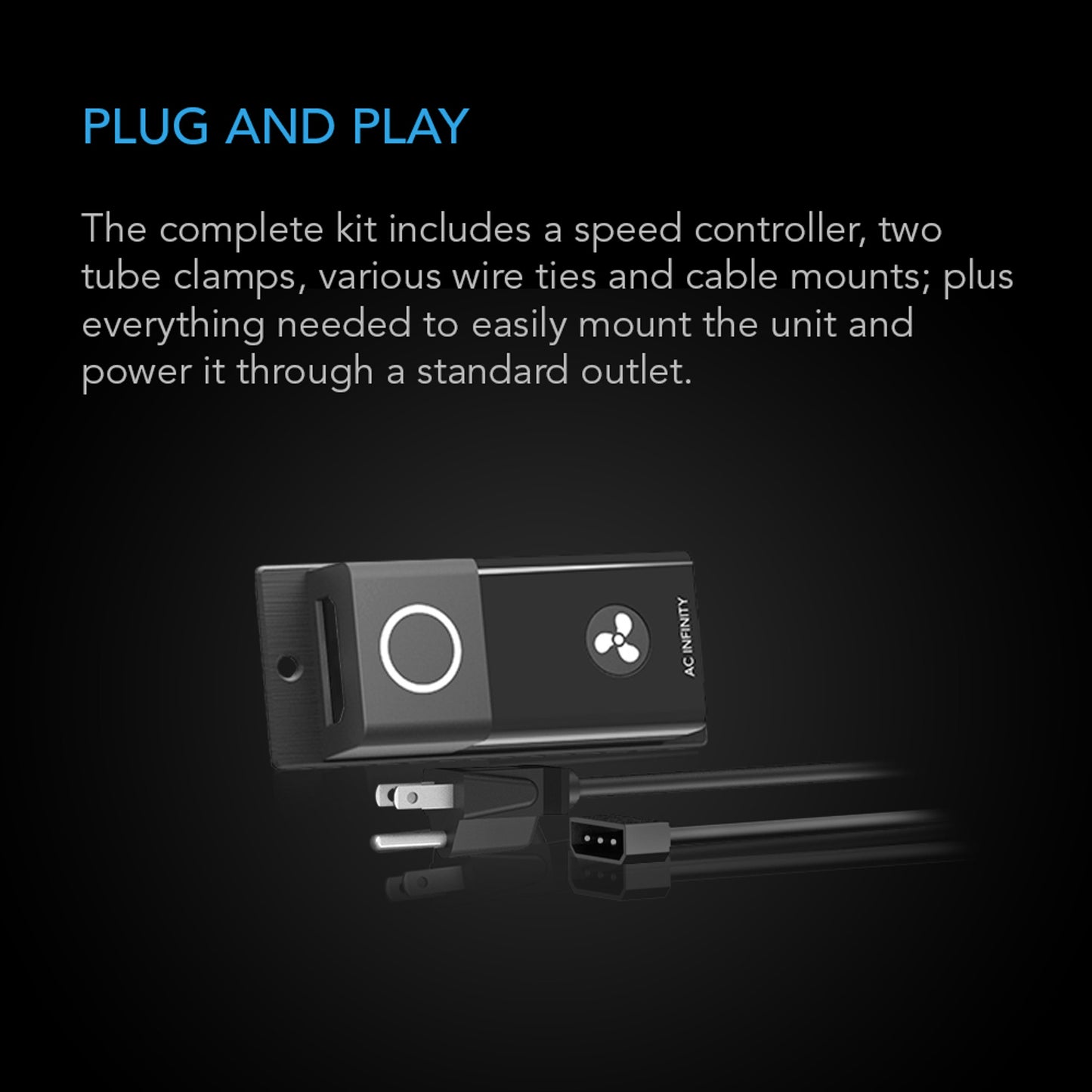

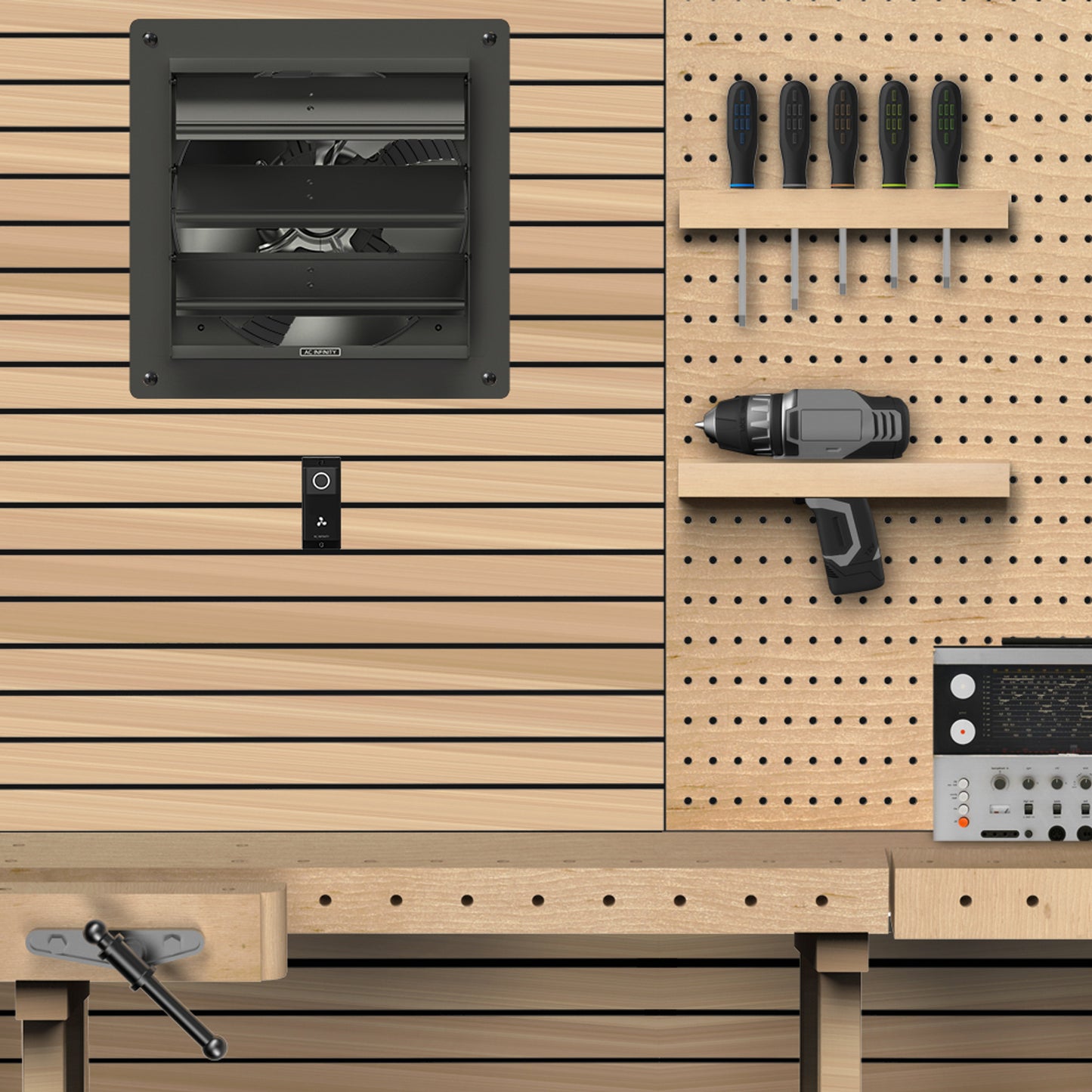

A high-airflow exhaust fan designed to cool and ventilate greenhouses, garages, attics, workshops, and sheds. The system can automatically eliminate heat, moisture, odor, and dust from enclosures, rooms and buildings. Features an inline speed controller utilizing PWM-technology. Innovative EC-motor with PWM-control maximizes airflow while reducing energy consumption and noise levels. Heavy-duty build features aluminum blades, steel wire guards, and steel shutters. Includes everything needed to mount the fan unit and power it through an outlet. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

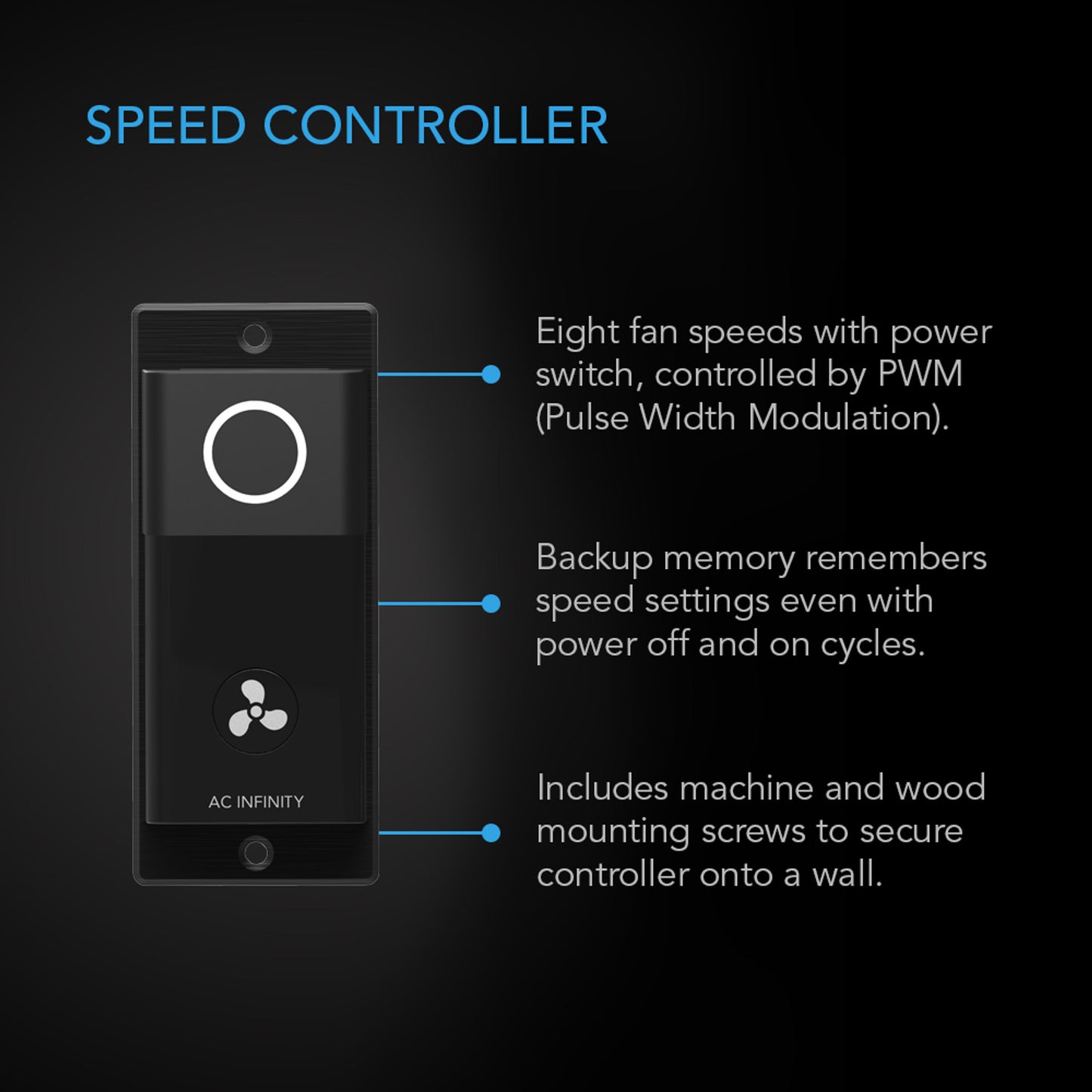

PRECISE SPEED CONTROLLER

The inline speed controller enables you to set the shutter fan’s speed to optimal noise and airflow levels for various environments. This shutter fan features an EC-motor that is precisely controlled using PWM (Pulse Width Modulation). This technology enables the fan's motor to be able to run smoothly at extremely low RPM speeds without generating motor noises and heat as seen on variable voltage controllers. Eight-speed options are available with a power switch, and backup memory.

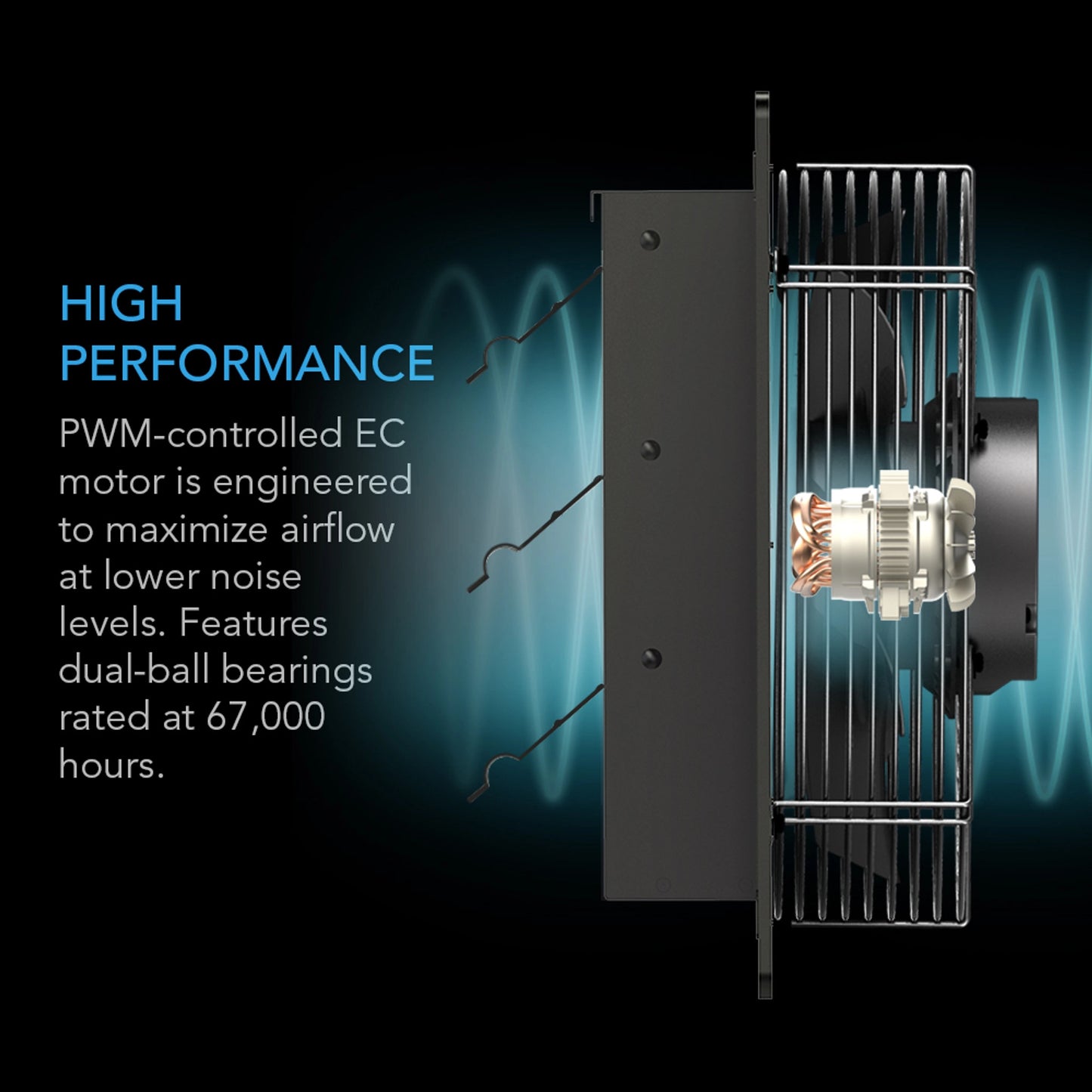

HEAVY-DUTY PERFORMANCE

Features steel shutters that are weather and corrosion resistant, and automatically closes when not in use. The blades and impeller are constructed of lightweight aluminum, weight-balanced to reduce vibrations. Utilizing an innovative EC motor that is controlled electronically using PWM (Pulse Width Modulation), the fans can maximize airflow while reducing noise and power consumption. The fully-enclosed motor is also permanently lubricated and houses dual-ball bearings that are rated at 67,000 hours. The unit is IP-44 rated to be highly resistant to dust and liquids, and performs well even in harsh environments.

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	AIRLIFT S10
Product Model	AC-ALS10
UPC Code	819137021433

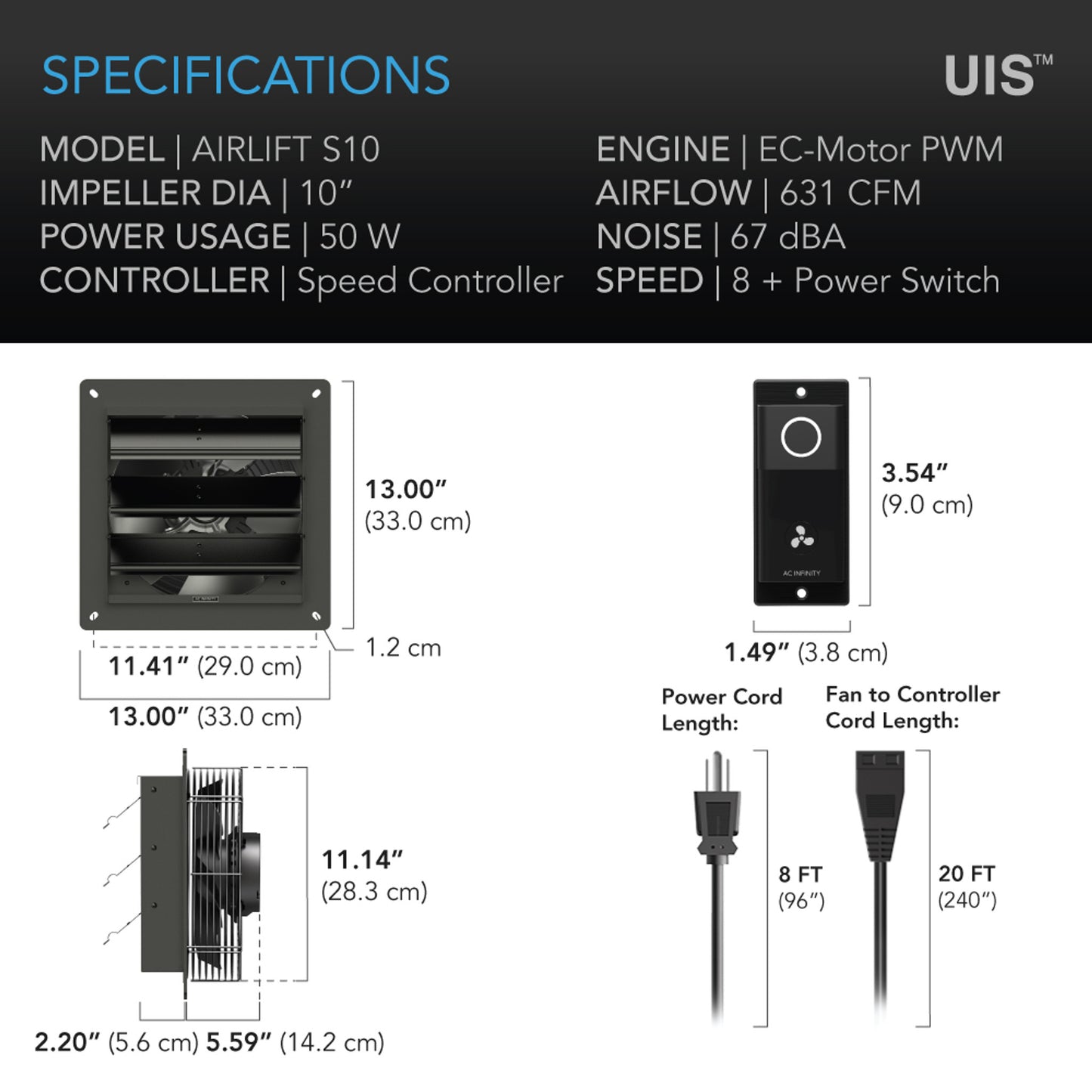

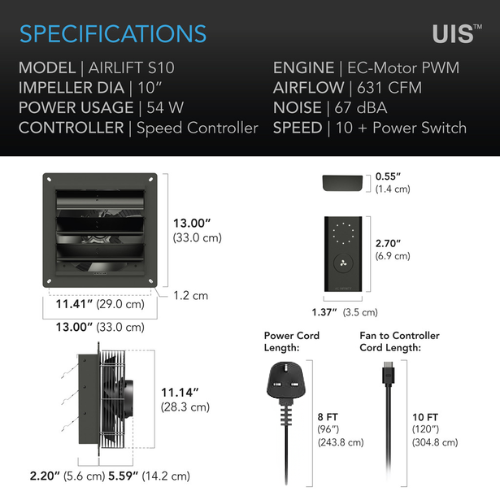

Product and Mounting Dimensions - Fan Unit
Total Dimensions	13.0 x 13.0 x 7.79 in. (33.0 x 33.0 x 19.8 cm)
Frontside Enclosure Dimensions	10.62 x 10.62 in. x 2.20 in. (27.0 x 27.0 cm x 5.6 cm)
Required Mounting Hole	10.78 x 10.78 in. (27.4 x 27.4 cm)
Hole to Hole Distance	11.41 x 11.41 in. (29.0 x 29.0 cm)
Screw Hole Size	Ø 0.27 in. (Ø 0.7 cm)
Cord Length to Controller	240 in. (20 feet)
Product and Mounting Dimensions - Controller
Total Dimensions	3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
Required Mounting Area	2.95 x 0.51 in. (3.6 x 1.3 cm)
Hole to Hole Distance	2.87 in. (7.3 cm)
Screw Hole Size	Ø 0.157 in. (Ø 0.4 cm)
Cord Length to Plug	96 in. (8 feet)
Product Performance and Technical Specs
Total Airflow	631 CFM
Total Noise	67 dBA
Static Pressure	96 Pa
Operating Voltage	100-240V AC
Power	50W
Current	0.75A
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
CE Certification (Whole Product)	PDF
Product Manual
Product Manual	PDF
