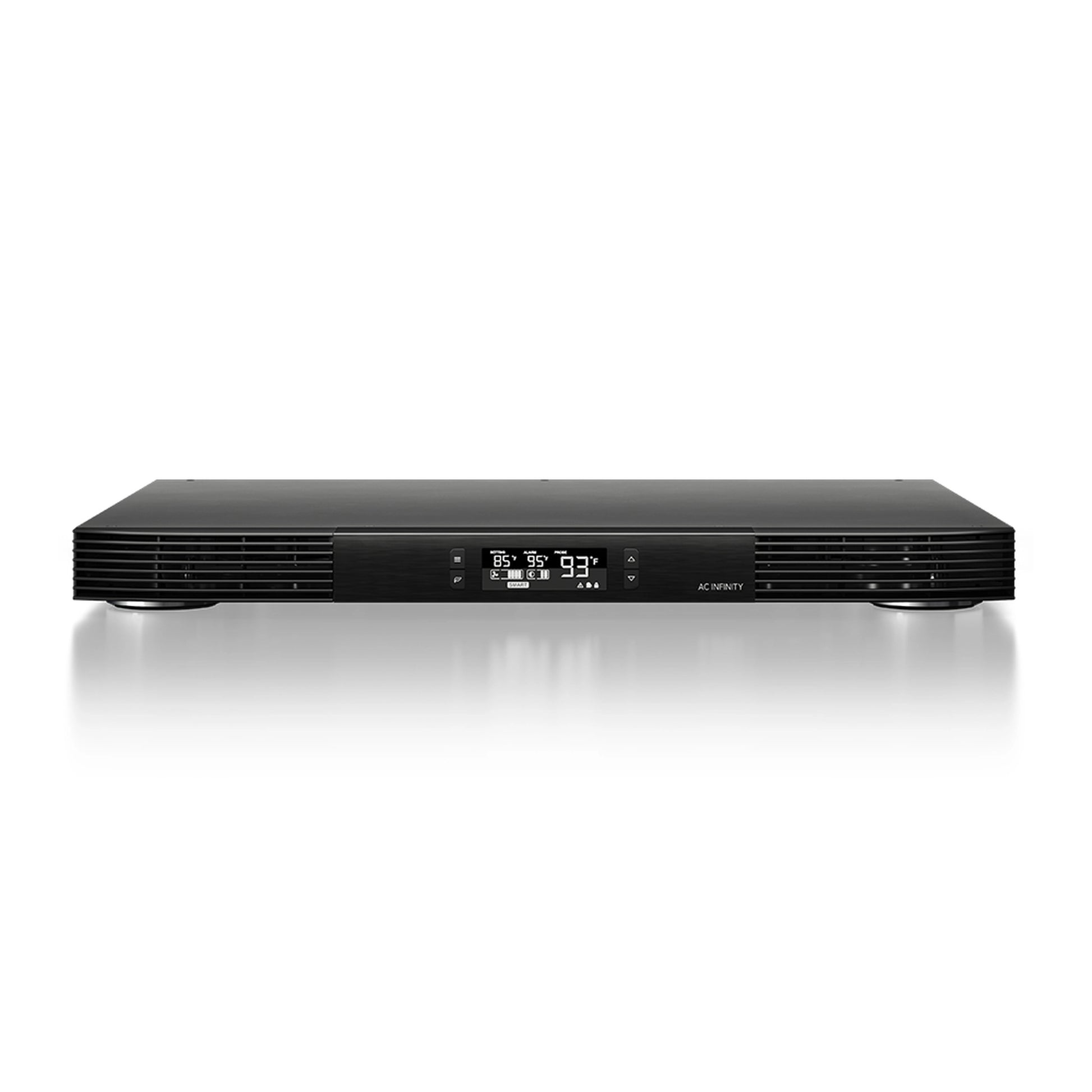

Aircom T10, Receiver and AV Component Cooling Fan System, Front Exhaust 17"

• A quiet fan system designed for cooling receivers, amplifiers, DVRs, and other AV components.
• Protects components from overheating, performance issues, and shortened lifespans.
• LCD thermostat programming with six speed controls, alarm alerts, failure triggers, and memory.
• Contains three dual-ball bearing fans with PWM-controlled motors to minimize noise.
• Dimensions: 17 x 13.5 x 1.5 in. | Exhaust: Front | Airflow: 160 CFM | Noise: 24 dBA | Bearings: Dual Ball

PRODUCT DESCRIPTION

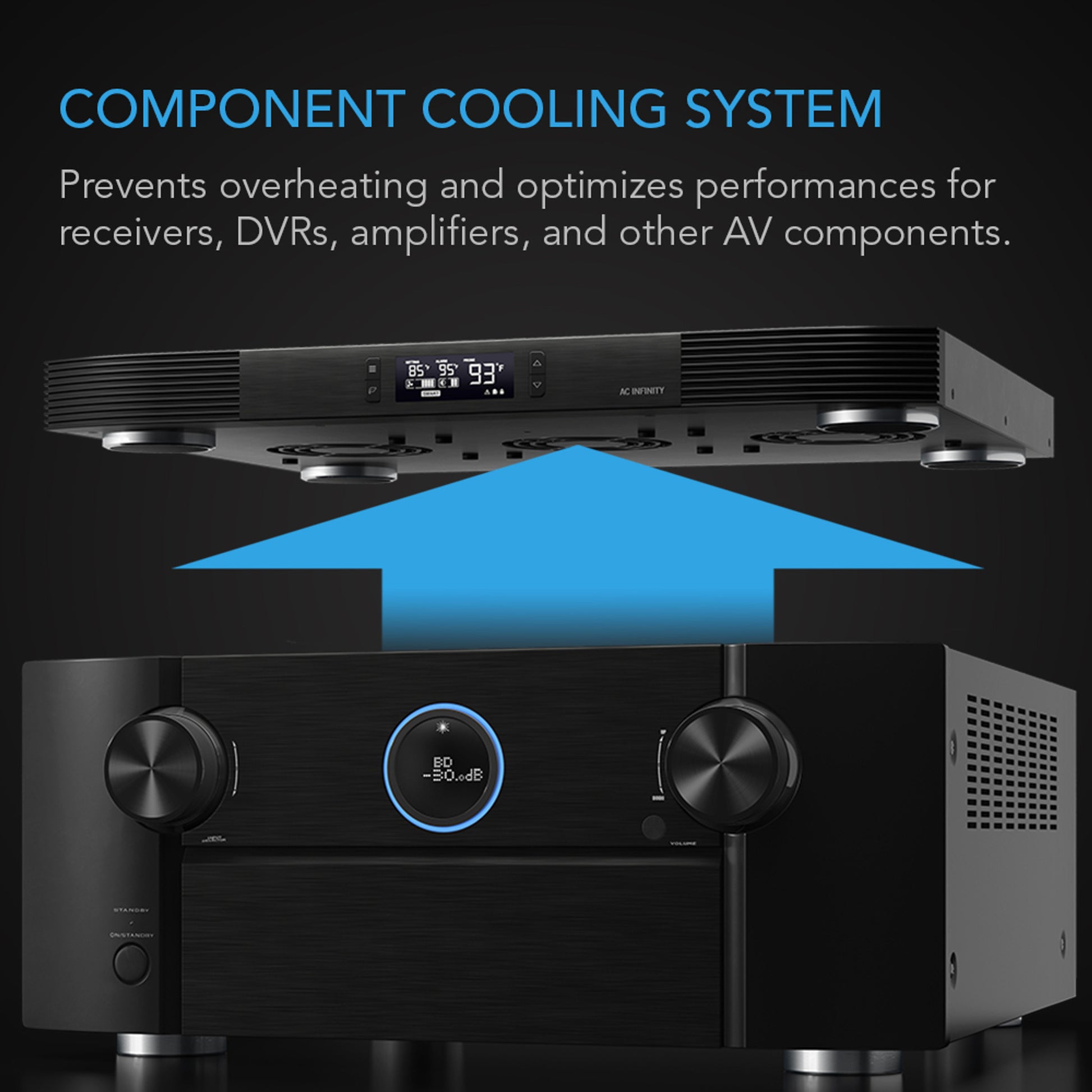

A quiet cooling fan system designed to be placed on top of AV components such as receivers, amplifiers, and DVRs. Maintaining an optimal temperature for components prevents overheating, ensures constant performance, and extends their lifespan. The LCD digital controller on the front of the system features a smart thermostat with speed control and status alerts. The steel enclosure houses three dual-ball bearing blowers that pull heat out of the component and exhausts out the rear. The dual ball bearings also allow this fan system to be mounted horizontally or vertically. Its slim low-profile design enables the unit to fit in tight spaces. On the backside are ports to connect and control additional fans. Includes corded power adapter to plug the fan system through an outlet.

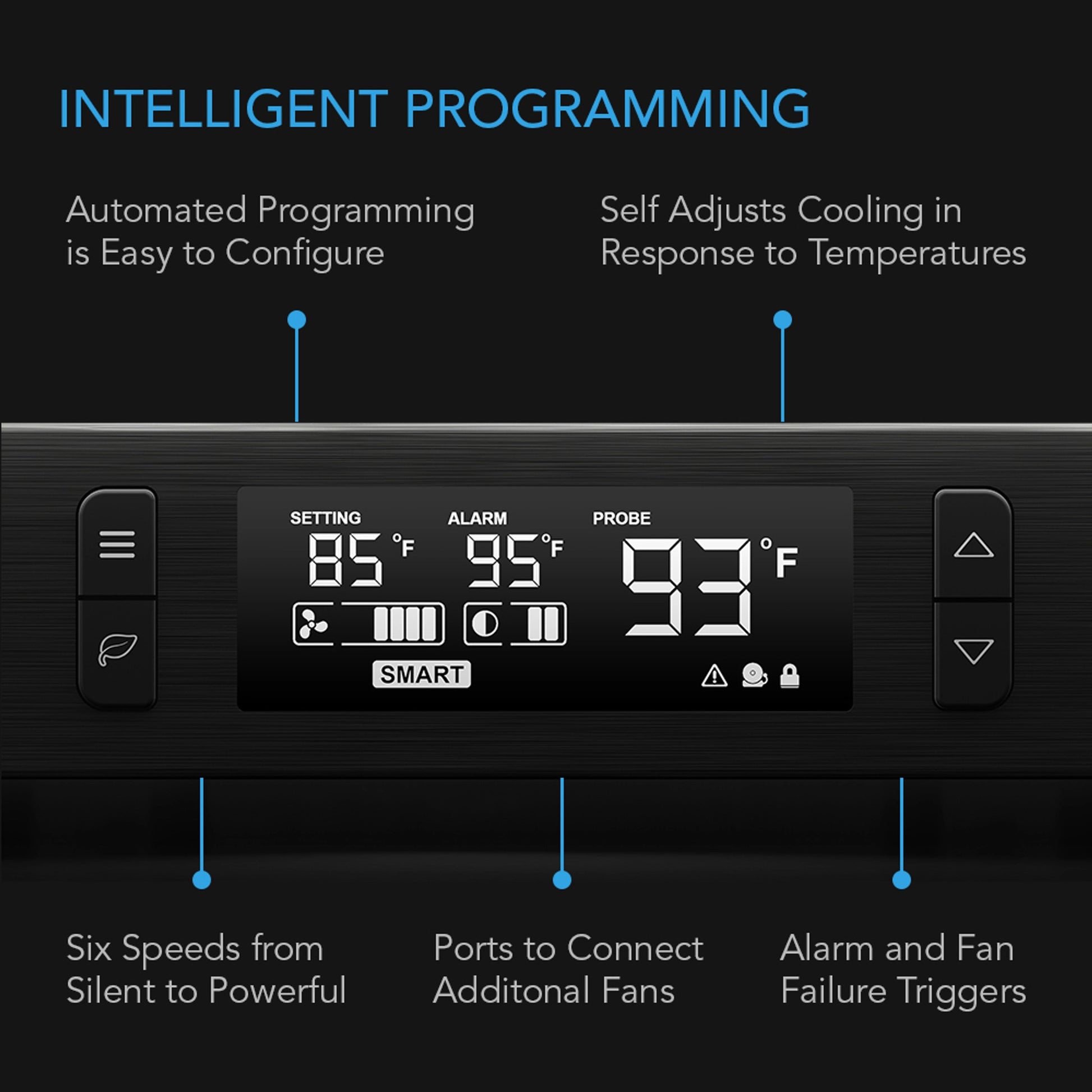

INTELLIGENT PROGRAMMING

Programming includes an easy-to-use thermostat and a SMART mode that automatically adjusts the fan’s speed to react to varying temperatures. Additional features include alarm alerts, fan failure triggers, power savings setting, display lock, and backup memory. Six fan speeds are available with three screen brightness settings. Behind the unit are ports that can control up to six individual AC Infinity AIRPLATE Cabinet fans and MULTIFAN Component fans.

DESIGN AND CONSTRUCTION

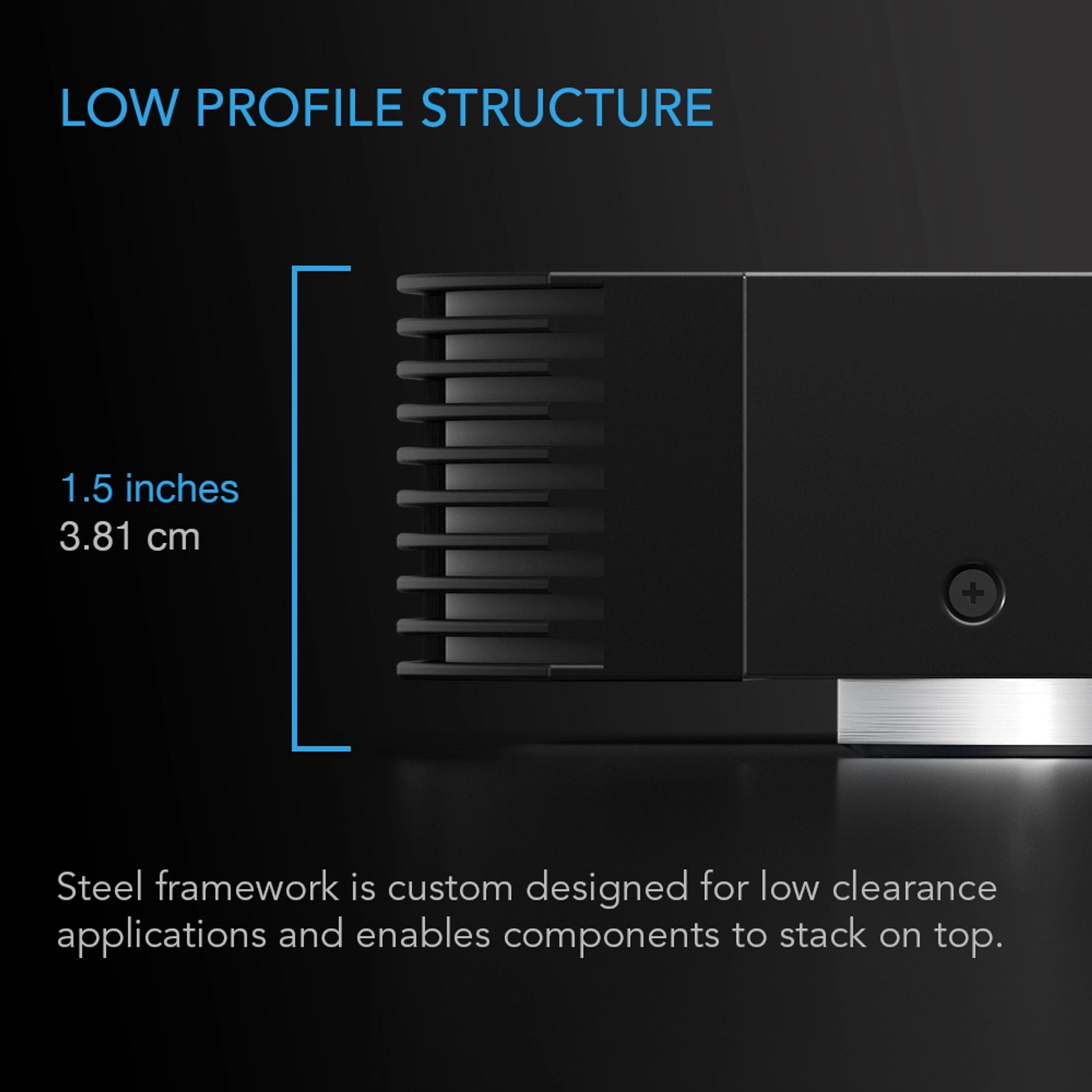

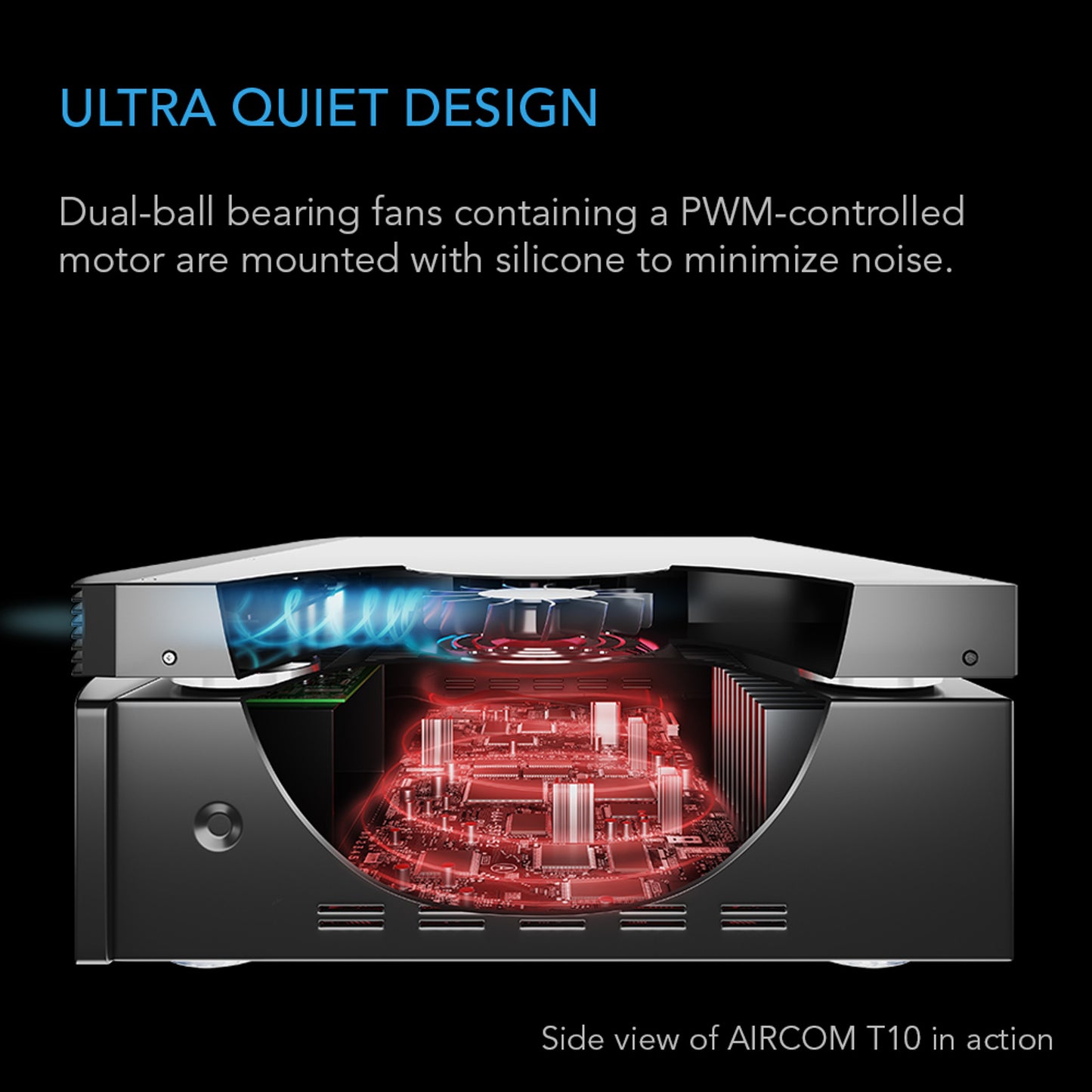

Each system features dual-ball bearing fans rated at 67,000 hours and are certified by CE and RoHS. Fans contain a PWM-controlled motor used to minimize noise during speed variations and are suspended in mid-air with silicone mounts to absorb vibrations. A low-profile design allows the unit to fit in applications with a limited height clearance. Aluminum and steel construction enables additional components up to 30 pounds to be stacked on top.

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	AIRCOM T10
Product Model	AC-ACT10
UPC Code	819137020313
Product Dimensions

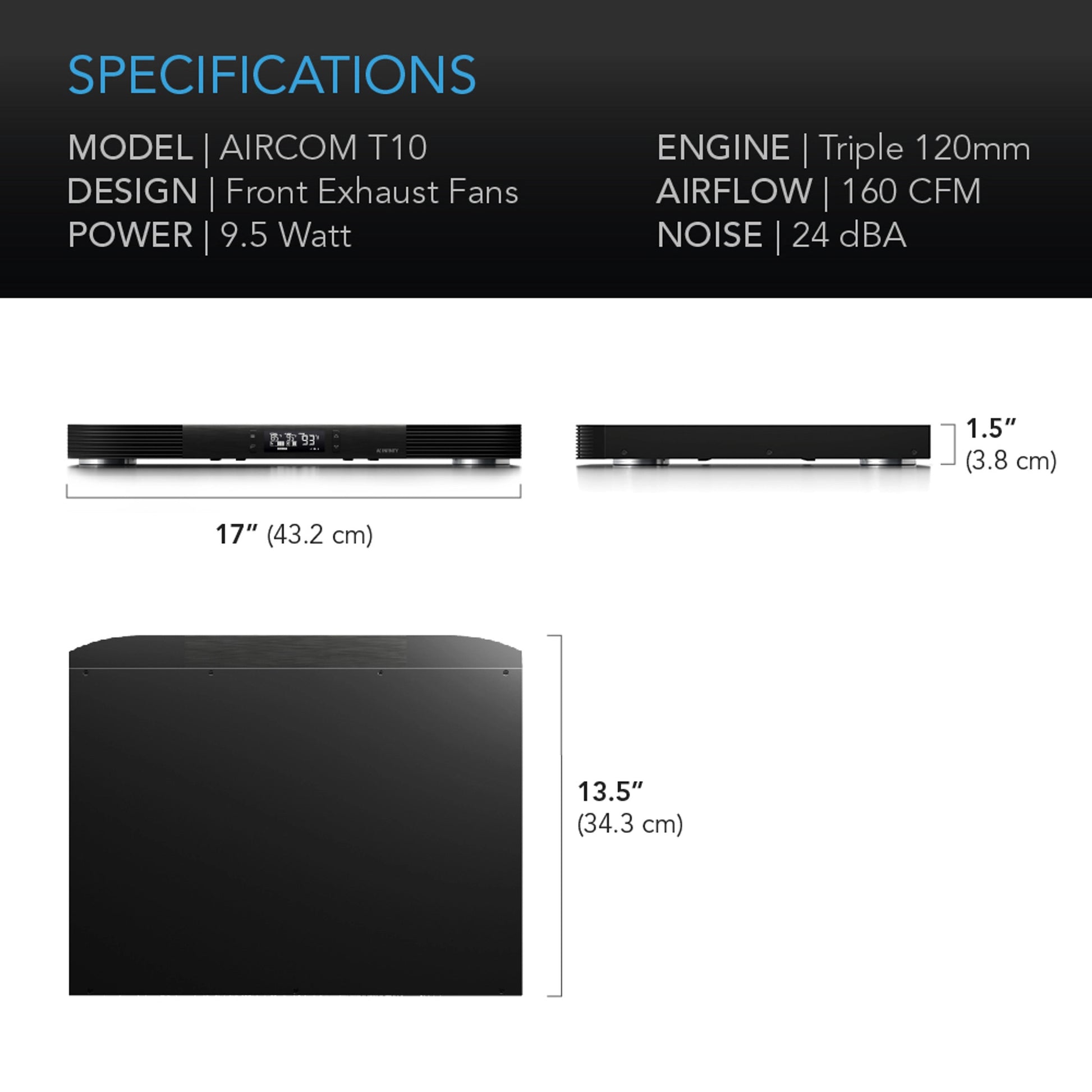

Total Dimensions	17 x 13.5 x 1.5 in. (43.2 x 34.3 x 3.8 cm)
Cord Length	72 in (6 feet)
Product Performance and Technical Specs
Number of Fans	3
Exhaust	Front
Total Airflow	160 CFM
Total Noise	24 dBA
Static Pressure	1 mm-H2O
Operating Voltage	12V DC
Power	9.5 W
Current	0.79 A
Wall Adapter Input	100 to 240V AC - Compatible UK adapter supplied
Operating Humidity	35 to 85% RH
Operating Temperature	0 to 158°F
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
Top Weight Capacity	30 Pounds
CE Certification (Whole Product)	PDF
RoHS Cert. (Whole Product)	PDF
Product Manual
Product Manual	PDF
